Removing and installing/replacing left band elimination circuit (Cooper)

Preliminary work needed:

• Detach left split door TRIM PANEL .

Removal:

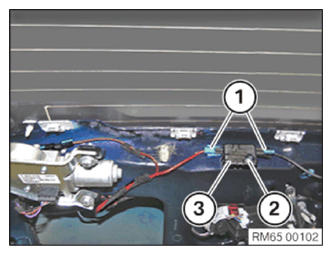

Disconnect connector (1).

Remove screw (2).

Remove blocking circuit (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Correctly position band elimination circuit (3).

Tighten screw (2).

Insert and connect connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Attach left split door TRIM PANEL .
