Removing and installing (replacing) radio (Cooper)

Special tools required:

• 00 9 327

To avoid damage, do not tap or dirty the display area.

Removal:

Unclip and remove the trim (1) with the special tool 00 9 327 toward the top.

Courtesy of BMW OF NORTH AMERICA, INC.

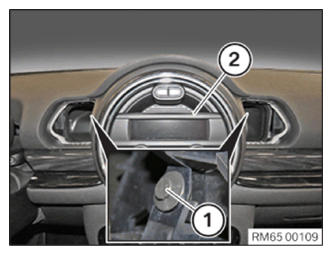

Release expanding rivet (1) from left and right on central display (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock locking mechanism (1) with screwdriver in arrow direction and at the same time pull central instrument towards passenger compartment.

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect.

Remove central instrument with radio (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Loosen screws (1).

Remove radio (2) from central instrument (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replacement:

Position radio (2) correctly on central instrument (3).

Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Join plug connections (1) to central instrument with radio (2) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Correctly position central instrument (2).

Press on central instrument (2) at top on dashboard and engage.

Fasten expanding rivet (1) from left and right on central display (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Engage cover (1) correctly in dashboard (2).

Courtesy of BMW OF NORTH AMERICA, INC.
