Removing and installing/replacing the interior roof light (rear) (Cooper)

Special tools required:

IMPORTANT: Follow INSTRUCTIONS for handling light bulbs (interior lights).

Removal:

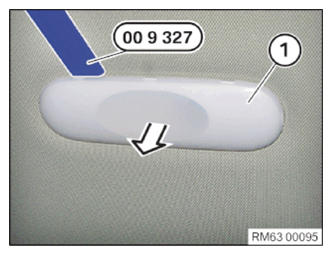

Pry out interior roof light (1) using special tool 00 9 327.

Disconnect associated connector and remove interior roof light (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Installation:

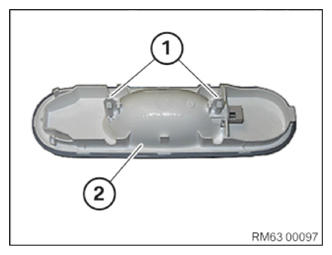

NOTE: The retaining lugs (1) on the interior roof light (2) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

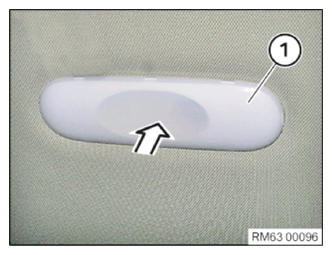

Connect associated connector and join interior roof light (1).

NOTE: Make sure interior roof light (1) is correctly seated.

Courtesy of BMW OF NORTH AMERICA, INC.
