Removing and installing/replacing auxiliary brake light (Cooper)

IMPORTANT: Follow NOTES for handling light bulbs (exterior lighting).

Removal:

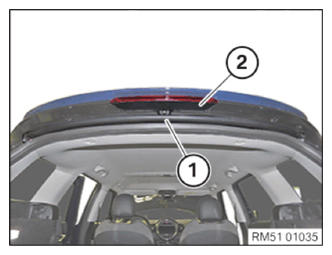

Detach gasket (1) in the area of the auxiliary brake light (2) downwards.

Courtesy of BMW OF NORTH AMERICA, INC.

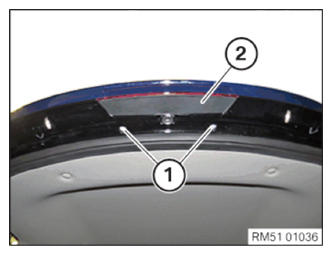

Release screws (1) on the auxiliary brake light (2).

Feed out auxiliary brake light (2) towards rear.

Courtesy of BMW OF NORTH AMERICA, INC.

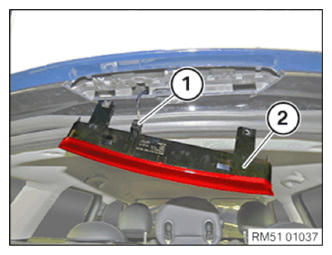

Disconnect plug connection (1) and remove auxiliary brake light (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connect plug connections (1) and feed in the auxiliary brake light (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws (1) on the auxiliary brake light (2).

Tightening torque 63 25 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Attach gasket (1) in area of auxiliary brake light (2).

Courtesy of BMW OF NORTH AMERICA, INC.
