Replacing bulb socket for left or right tail light (split door) (Cooper)

WARNING: Follow INSTRUCTIONS for handling light bulbs (exterior lighting).

Removal:

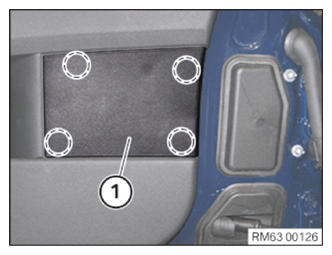

Unclip cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

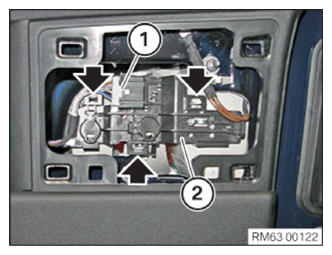

Unlock and disconnect the connector (1).

Release locks and the bulb sockets (2) from the tail light.

Courtesy of BMW OF NORTH AMERICA, INC.

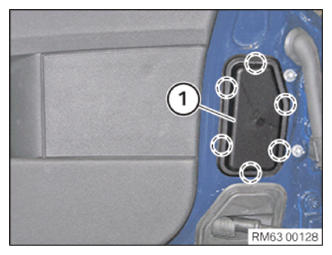

Unclip cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

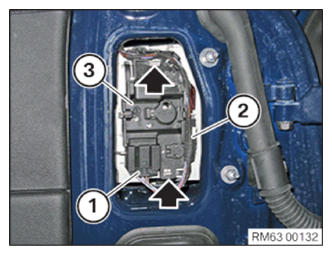

Unlock and disconnect the connector (1).

Release access lines (2) from holders.

Release locks and the bulb sockets (3) from the tail light.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

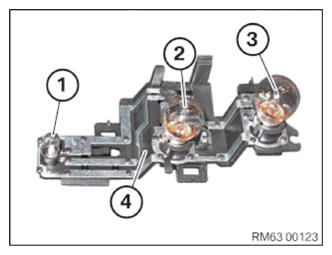

Carefully press bulb (2; 3) into bulb socket (4) and turn counterclockwise.

Then pull out bulb (2; 3) from bulb socket (4).

Carefully take bulb (1) out of bulb socket (4).

Courtesy of BMW OF NORTH AMERICA, INC.

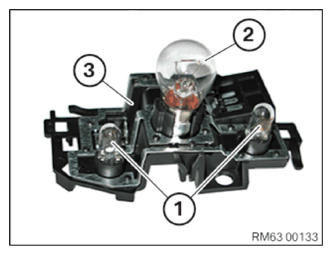

Carefully take bulb (1) out of bulb socket (3).

Carefully press bulb (2) into bulb socket (3) and turn counterclockwise.

Then take bulb (2) out of bulb socket (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert bulb socket (3) in tail light.

Connect the connector (1).

Clip access line (2) into the holders.

NOTE: Ensure bulb socket is correctly locked (3) and fitted in tail light.

Courtesy of BMW OF NORTH AMERICA, INC.

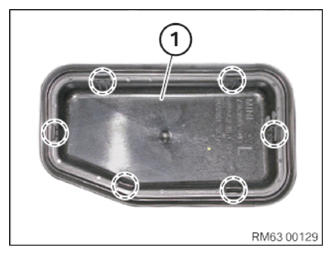

Installation note:

Retaining lugs on trim (1) must not be damaged or missing.

The gasket on the trim (1) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

Clip in cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Insert bulb socket (2) in tail light.

Connect the connector (1).

NOTE: Ensure bulb socket is correctly locked (2) and fitted in tail light.

Courtesy of BMW OF NORTH AMERICA, INC.

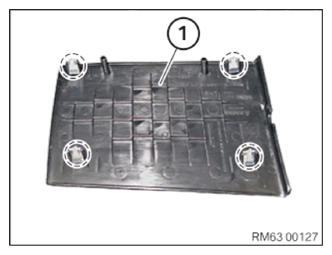

Installation note:

Clamps on trim (1) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

Clip in cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.
