Removing and installing/replacing left or right tail light (Cooper)

Preliminary work needed:

• Remove either right TRIM PANEL for split door or left TRIM PANEL for split door.

Removal:

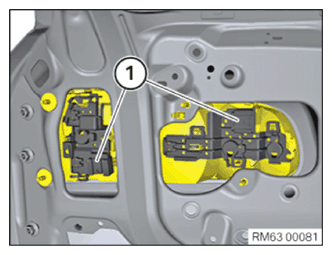

Unscrew nuts (1).

Courtesy of BMW OF NORTH AMERICA, INC.

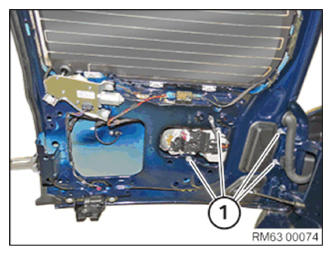

Disconnect plug connection (1).

Remove tail light from outside.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

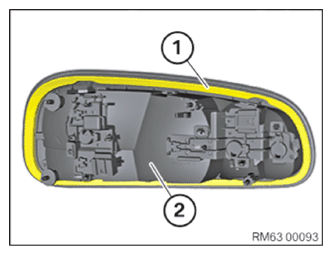

Make sure gasket (1) is correctly positioned on tail light (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Install tail light from outside.

Connect plug connections (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down nuts (1).

Tightening torque 63 21 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install either right TRIM PANEL for split door or left TRIM PANEL for split door.
