Remove and install left tail light of bumper (Cooper)

Removal:

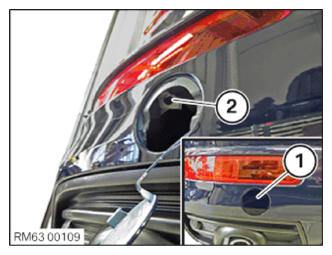

Remove cover (1).

Remove screw (2).

Remove the tail light towards rear.

Courtesy of BMW OF NORTH AMERICA, INC.

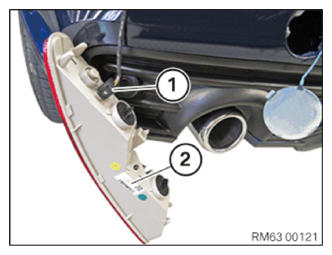

Unfasten plug connection (1) and disconnect.

Remove tail light (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install tail light (2) and connect and lock the plug connection (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Insert tail light in the bumper.

Tighten screw (2).

Tightening torque 63 21 2AZ .

Mount cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.
