Removing and installing/replacing front left or right auxiliary turn signal lamps (Cooper)

Special tools required:

WARNING: Follow INSTRUCTIONS for handling light bulbs (exterior lighting).

Removal:

Tape off body in the working area.

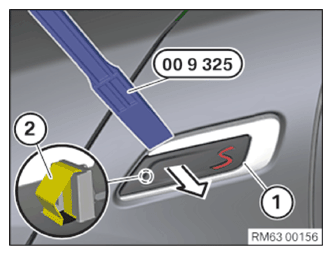

Carefully unclip auxiliary turn signal lamp (1) outwards with special tool 00 9 325 from the clamps (2).

Feed out auxiliary turn signal lamp (1) from side panel.

Unlock associated plug connection and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

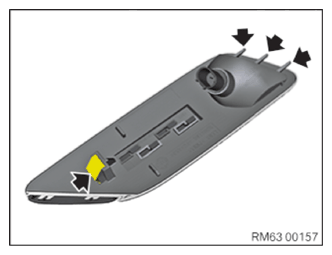

NOTE: Guides and clamps must not be missing or damaged.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect associated connector.

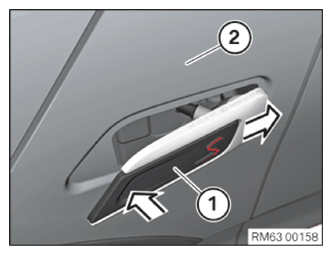

Position auxiliary turn signal lamp (1) at side panel (2) and engage.

Courtesy of BMW OF NORTH AMERICA, INC.
