Removing and installing/replacing pressure line between rail and high pressure pump

Disconnect NEGATIVE BATTERY TERMINAL (risk of fire due to short-circuiting on removal).

Electric fuel pump starts up automatically when door is opened!

Carry out installation work on fuel system only with coolant temperature below 40°C.

Gas can emerge spontaneously at high speed when the high pressure line is released!

Recycling:

Fuel leakages when fuel lines are detached.

Catch and dispose of leakage fuel in a suitable container.

Observe country-specific waste disposal regulations.

Introduced contaminants can cause malfunctions in the system!

• Do not allow any dirt particles or foreign bodies to get into the system.
• Remove all traces of contamination before removing lines or separate components.
• Use only lint-free cloths.
• Seal all fuel system openings with protective caps or plugs.

The resistance of the silicone material is reduced significantly by contact with fuel, which may cause the ignition coil to fail!

Cover ignition coil with suitable means.

Preliminary work needed:

• Remove ACOUSTIC COVER .
• Remove INTAKE SILENCER HOUSING .
• Remove IGNITION COILS .

Removal:

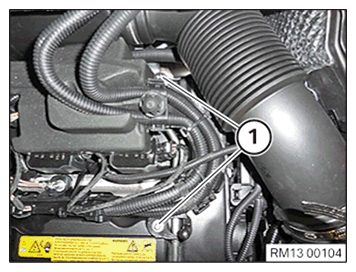

Unscrew the screws (1).

Release wiring harness from cylinder head cover.

Courtesy of BMW OF NORTH AMERICA, INC.

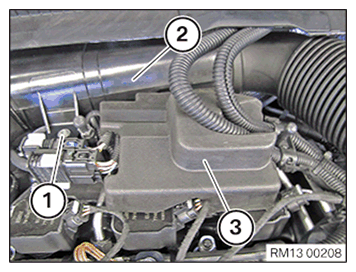

Remove screw (1).

Slightly push clean air pipe (2) to the rear and remove the sound insulation (3) of the high pressure pump.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

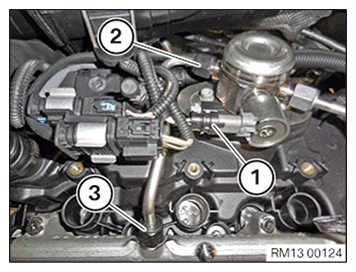

Unlock connector (1) and detach.

Release union nuts (2) and (3).

Release and remove pressure line between high-pressure pump and rail.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Mount high pressure line at the rail first, then mount high pressure line at the high pressure pump.

First, tighten union nuts (3) on the rail hand-tight.

Then, tighten union nut (2) on the high pressure pump hand-tight.

First, tighten union nuts (3) on the rail to tightening torque.

Tightening torque 13 53 6AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Then tighten union nut (2) on the high pressure pump to tightening torque.

Tightening torque 13 53 6AZ .

Attach connector (1) to high-pressure pump.

Connector (1) must engage audibly.

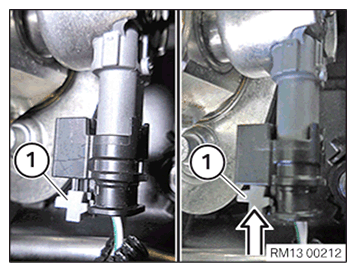

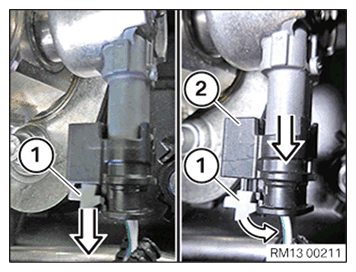

Connect connector on the high pressure pump until the lock (1) engages audibly.

Then lock the lock (1) in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Install sound insulation (3).

Fit clean air pipe (2).

Tighten screw (1).

Tightening torque 13 71 6AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Install wiring harness on cylinder head cover.

Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install IGNITION COILS .
• Install INTAKE SILENCER HOUSING .
• Install ACOUSTIC COVER .
