Replacing the wiper blade for the rear wiper
Attention!
Make sure the wiper arm does not contact the rear without its wiper blade.
Removal:

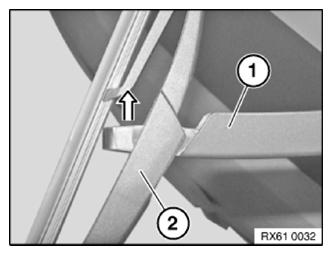

Stand up wiper arm for rear wiper (1) and wiper blade for rear wiper (2).
Unclip wiper blade for rear wiper (1) in direction of the arrow from the wiper arm for (2) and remove.
Installation:
Join wiper blade for rear wiper (2) in wiper arm for rear wiper (1) in arrow direction.
Fold in wiper arm for rear wiper (1) and wiper blade for rear wiper (2).
NOTE:
Make sure that the wiper blade for rear wiper (2) is correctly latched on the wiper arm for rear wiper (1).
