Removing and installing/replacing top left wishbone (FWD)

Preliminary work needed:

• Remove rear WHEEL .
• Remove EXHAUST SYSTEM .

Removal:

Courtesy of BMW OF NORTH AMERICA, INC.

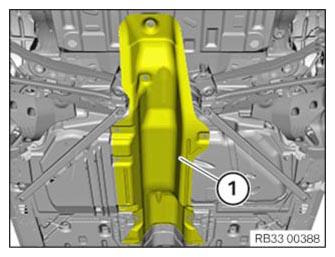

Remove heat shield (1).

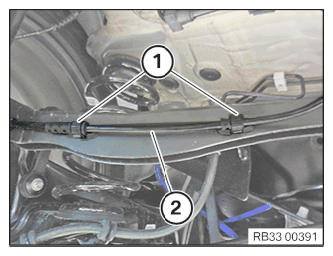

Remove cable (2) from holder (1).

Courtesy of BMW OF NORTH AMERICA, INC.

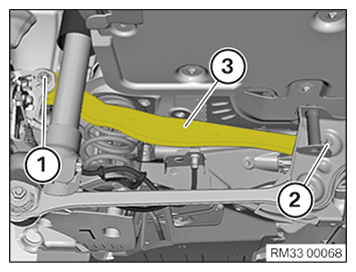

Release nut and remove screw (1).

Release nut and remove screw (2).

Remove wishbone (3).

Installation note:

Tighten screw connection (2) in NORMAL POSITION .

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Align wishbone (3).

Part  : Replace nut.

Insert screw (1) and tighten nut.

Tightening torque 33 32 1AZ .

Part  : Replace nut.

Insert bolt (2) and screw on nut.

• Do not yet tighten to specified torque!

Shift vehicle into NORMAL POSITION .

Tighten nut of bolt (2) in normal position.

Tightening torque 33 32 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Secure cable (2) on wishbone.

Courtesy of BMW OF NORTH AMERICA, INC.

Mount heat shield (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install EXHAUST SYSTEM .
• Install rear WHEEL .
• Perform either KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or KINEMATICS DIAGNOSIS SYSTEM WHEEL ALIGNMENT WITH RIDE HEIGHT MEASUREMENT WITHOUT LOADING THE VEHICLE .
