Removing and installing/replacing left engine compartment lid lock

Preliminary work needed:

• Remove TOP CONNECTION .

Removal:

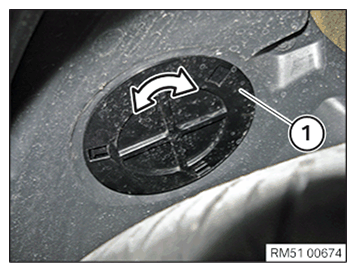

Open end cover (1) in front left wheel arch by turning counterclockwise.

Courtesy of BMW OF NORTH AMERICA, INC.

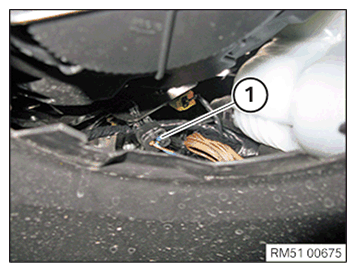

Unfasten plug connection (1) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

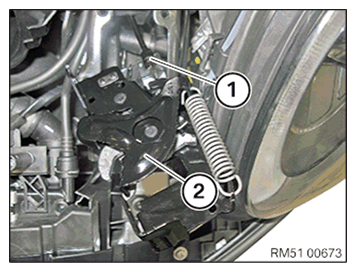

Feed out lock (2).

Detach cable (1) and remove lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach cable (1).

Feed in lock (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Connect plug connection (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Close end cover (1) in front left wheel arch by turning clockwise.

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install TOP CONNECTION .
