Replacing Engine Mount In Front Of Bulkhead, Left (Cooper Clubman F54)

Observe procedure of REPAIR STAGE 3 .

Read contents of BODY, GENERAL .

Use only an approved SPOT WELDER for repairs!

Place vehicle on straightening bench.

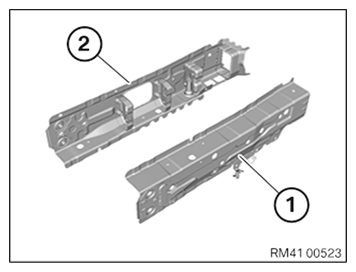

The following new parts are required (see applicable BMW Parts Catalog):

(1) Engine mount, outer
(1) Engine mount, inner

Courtesy of BMW OF NORTH AMERICA, INC.

Removal

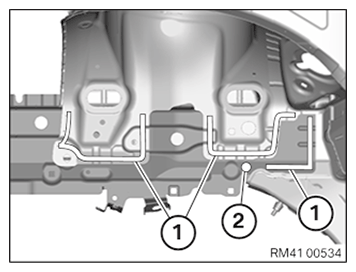

Open welded connections in areas (1) and (2).

3 panels are welded in area (2). Open welded connection for both outer panels.

Courtesy of BMW OF NORTH AMERICA, INC.

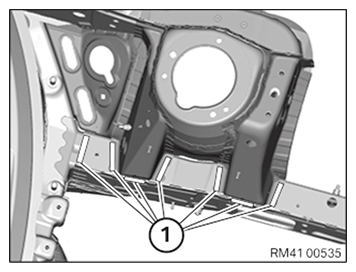

Open welded connections in areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

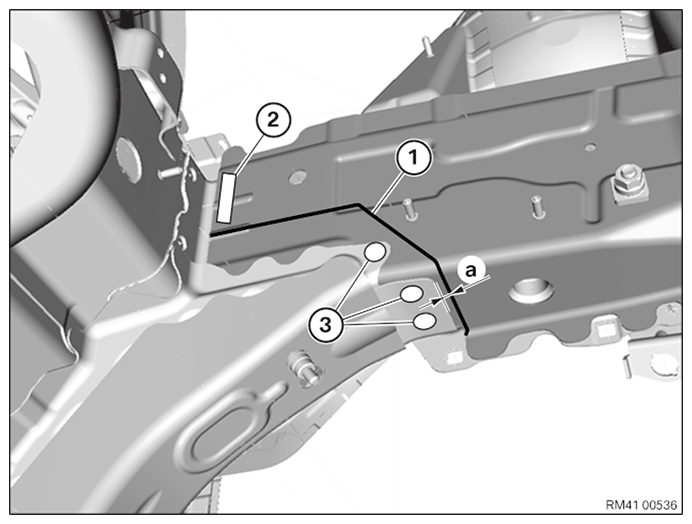

Mark severance cut (1) according to schematic diagram in accordance with specified dimension and cut.

Dimension (A) = 5 mm.

Release welded connections in areas (2) and (3) and remove engine mount.

NOTE: Three panels are welded in areas (3). Open welded connection for both outer panels.

New part preparation

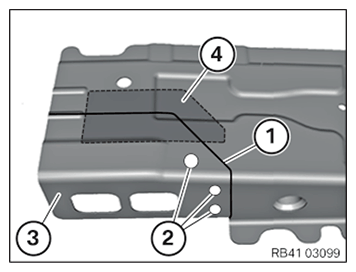

IMPORTANT: Cut outer panel only.

Mark severance cut (1) in accordance with severance cut on vehicle and cut.

Open welded connections in areas (2). Remove part section (3).

Prepare REINFORCEMENT PLATE (4) for severance cut (1).

Adjust new parts to fit with alignment bracket or universal mounting.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

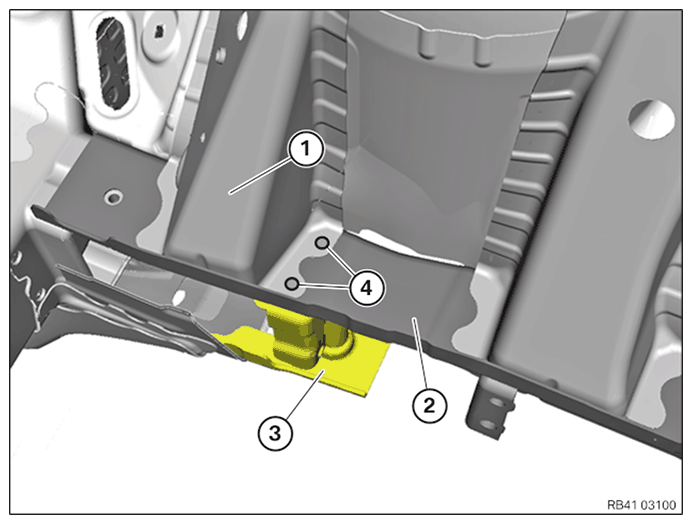

NOTE: Inner part of engine mount new part is hidden for a better overview.
Wheel arch support (1), engine mount outer part (2) and front axle support stand (3) must be welded together in areas (4) using PLUG WELDING METHOD .

Transfer and drill holes (4) (open welded connections) on new part engine mount outer part (2). Do not spot-drill or drill through front axle support stand (3)!

Courtesy of BMW OF NORTH AMERICA, INC.

Prepare new parts and reinforcement plate (1) in the areas (2) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.

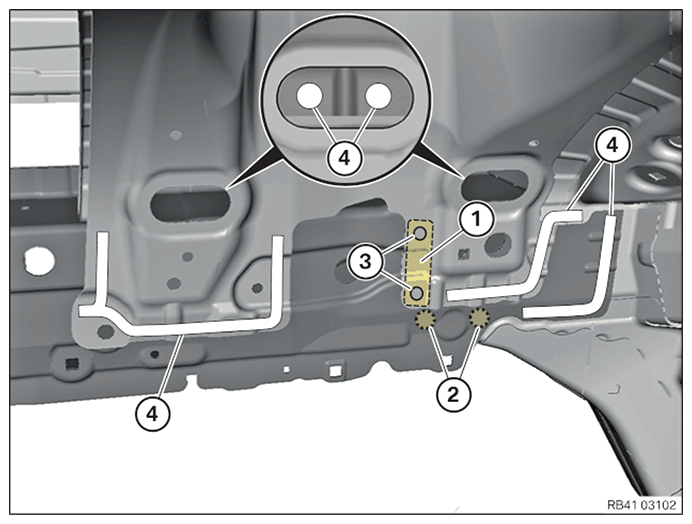

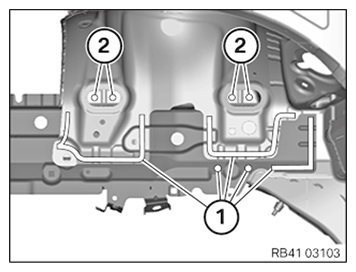

NOTE: The component "front axle support stand" is located in the areas (1) and (2). (refer to figure RB41 03100)
The component "front axle support stand" must be welded in the areas (1) and (2) using plug welding method.

Transfer and drill holes (3) (open welded connections) on new part engine mount outer part.

In areas (2) set one 8 mm dia. bore each. The positions of the bores (2) can be found on the removed part and transferred to the new part.

Do not spot-drill or drill through front axle support stand!

In the remaining areas (4), prepare new parts for joining by welding.

In areas (1), prepare new parts for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Install new parts and reinforcement plate to fit with alignment bracket or universal fixture.

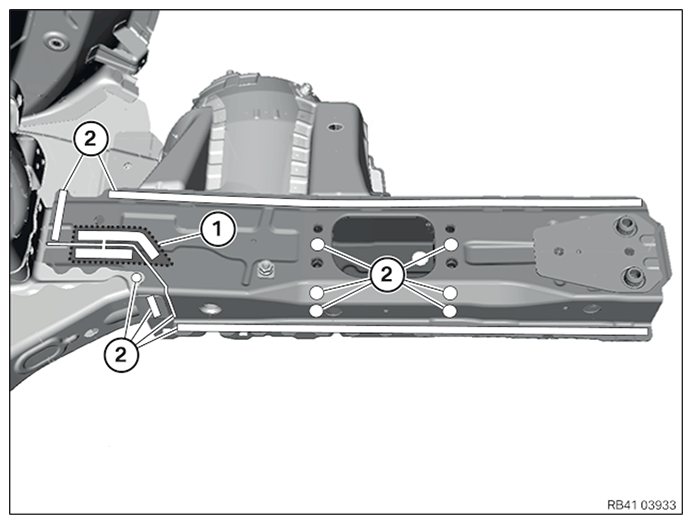

Weld new parts in areas (1) and (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Weld new parts in areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Weld new parts and reinforcement plate (1) in areas (2).
