35 11 000 Removing and installing complete bearing bracket for foot pedal (manual transmission) (Countryman base FWD, Countryman S FWD, Countryman base ALL4 AWD, Countryman S ALL4 AWD, Countryman JCW ALL4 AWD)

Preliminary work needed:

• READ AND COMPLY WITH GENERAL INFORMATION .
• Remove BRAKE BOOSTER .

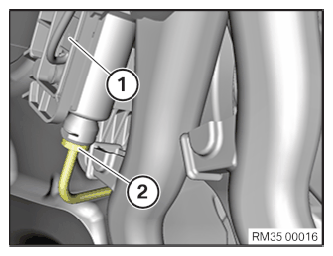

Disconnect plug connection (1) on clutch master cylinder.

Disconnect line connection (2).

Courtesy of BMW OF NORTH AMERICA, INC.

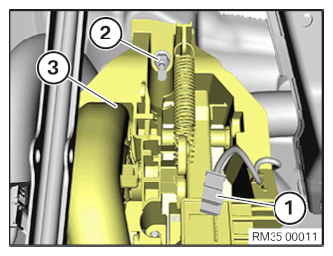

Disconnect plug connection (1) on brake light switch.

Undo nut (2) and remove bearing bracket (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install bearing bracket (3).

Fit nut (2) and tighten.

Replace self-locking nuts.

Parts:  Nut

Tightening torque 35 11 1AZ .

Connect plug connection (1) on brake light switch.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect line connection (2).

Connect plug connection (1) on clutch master cylinder.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Installing the BRAKE BOOSTER .
• Venting the clutch and brake hydraulics.
