Replacing backrest cover for front passenger seat (Except John Cooper Works)

Special tools required:

52 0 050

WARNING: Observe the NOTES airbag safety regulations and pyrotechnical belt tensioners.
Improper handling can lead to triggering of the pyrotechnical seat belt tensioner or side airbag, resulting in injuries.

WARNING: Injury hazard!
The seat frame has very sharp edges that can cause injuries from cuts.
Exercise extreme caution and wear work gloves as required when carrying out any repair work in the area of the seat frame.

Preliminary work needed:

Disconnect cable BATTERY GROUND LEAD.
Remove OUTER COVER on front seat.
Remove INNER COVER on front seat
Remove GUIDES for head restraint.

Removal:

For the professional repairs the use of the universal seat mount is recommended for carrying out the repair works on the disassembled seat.

Courtesy of BMW OF NORTH AMERICA, INC.

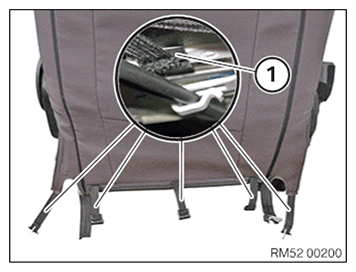

Detach all luggage straps (1) on the backrest cover.

Courtesy of BMW OF NORTH AMERICA, INC.

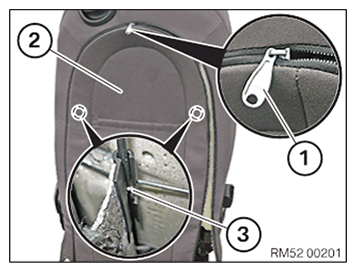

Open zipper (1).

Detach backrest cover (1) from the holders (3) and set it down.

Courtesy of BMW OF NORTH AMERICA, INC.

F56/F57 only:

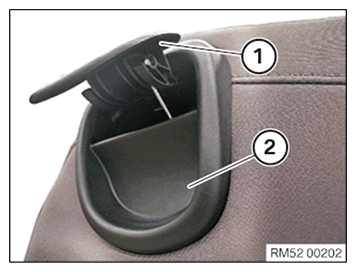

Open backrest release (1).

Unclip trim (2) towards rear and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.

Equipment specification with lumbar support:

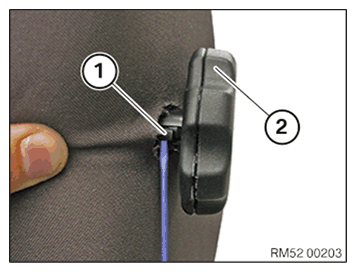

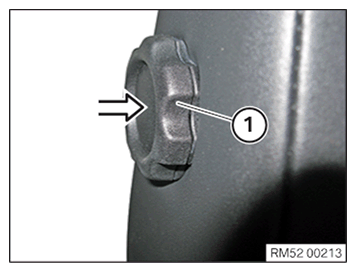

Carefully press backrest cover inwards until lock (1) of thumbwheel (2) is accessible.

Release lock (1) and remove thumbwheel (2).

Courtesy of BMW OF NORTH AMERICA, INC.

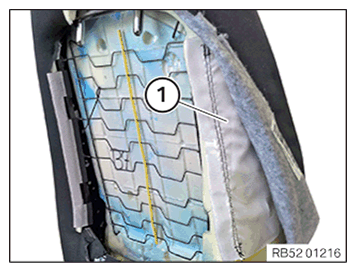

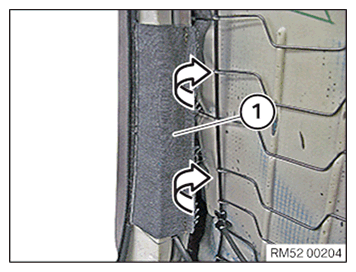

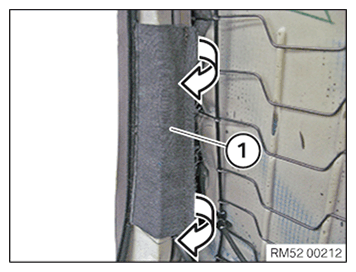

Release cover (1) and fold to the side.

Courtesy of BMW OF NORTH AMERICA, INC.

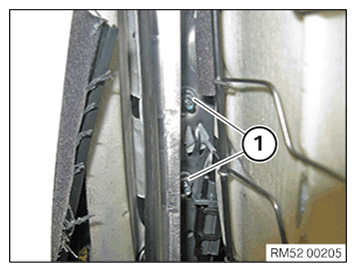

Unscrew nuts (1).

Courtesy of BMW OF NORTH AMERICA, INC.

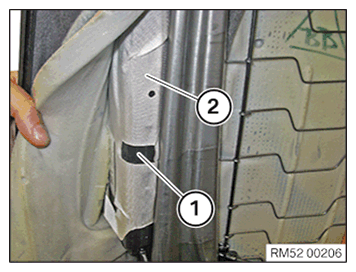

Take out side airbag (1) downwards out of cover pocket (2) and set it down.

Courtesy of BMW OF NORTH AMERICA, INC.

Release connector (1) from holder.

Release cable tie (2).

Release locks (3) and take out connector (4).

Release cable (5) from all holders and set aside with side airbag.

Version with seat heating:

Unlock and disconnect connector (6).

Take out the associated cable.

Courtesy of BMW OF NORTH AMERICA, INC.

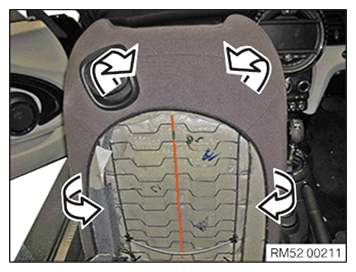

Remove backrest cover with facing from backrest frame.

Courtesy of BMW OF NORTH AMERICA, INC.

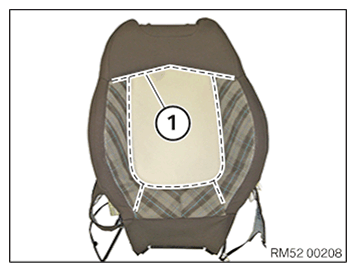

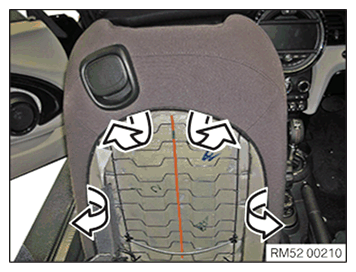

Release all clamps in area (1).

Remove seat cover from upholstery.

IMPORTANT: Remove all remnants of clamps from seat cover and upholstery.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Pull seat cover over the facing.

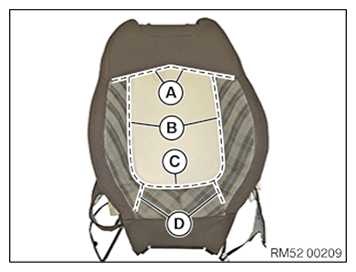

Mount clamps starting in the area (A) and then uniformly in areas (B), (C) and (D).

Parts: Replace clamps.

Courtesy of BMW OF NORTH AMERICA, INC.

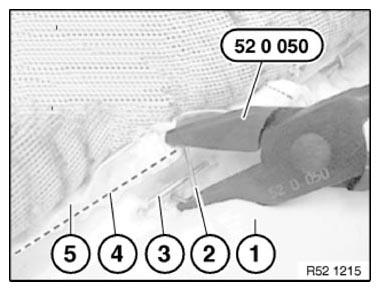

Insert new clamp (2) with special tool 52 0 050 and bend closed.

Upholstery
Clamp
Trim wire in upholstery
Trim wire in seat cover
Backrest cover

Courtesy of BMW OF NORTH AMERICA, INC.

Pull backrest cover with the facing on the backrest frame.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Depending on the version, the backrest cover can have a cover pocket (1) on both sides.
Ensure that the unused cover pocket (1) is fitted tautly and crease-free between the cushion and the backrest cover.

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in cable (5) and attach in all holders.

Insert connector (4) in the connector housing, until the locks (3) audibly engage.

Mount cable tie (2).

Engage connector (1) in holder.

Version with seat heating:

Connect connector (6).

Parts: Replace cable tie (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Fit the side airbag (1) upwards into the cover pocket (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down nuts (1).

Tightening torque 72 12 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Attach cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Equipment specification with lumbar support:

Engage thumbwheel (1).

Courtesy of BMW OF NORTH AMERICA, INC.

F56/F57 only:

Open backrest release (1) and clip in trim (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Attach backrest cover (1) in the holders (3).

Close zipper (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Attach all luggage straps (1) on backrest cover.

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

Install OUTER COVER on front seat.
Install INNER COVER on front seat.
Install GUIDES for head restraint.
Connect BATTERY GROUND LEAD. .
