Removing and installing left or right front door trim panel (Cooper Convertible)

Special tools required:

• 00 9 317

Preliminary work needed:

• Remove POWER WINDOW SWITCH .
• Remove DOOR ENTRY LIGHTING .

Removal:

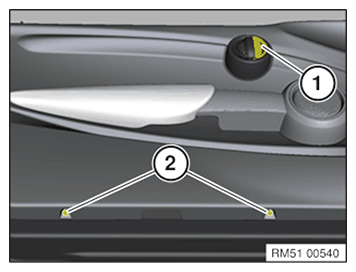

Remove cover (1).

Unscrew the screws (2).

Courtesy of BMW OF NORTH AMERICA, INC.

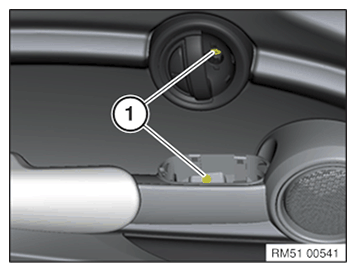

Unscrew the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

F55  only:

Lift off cover.

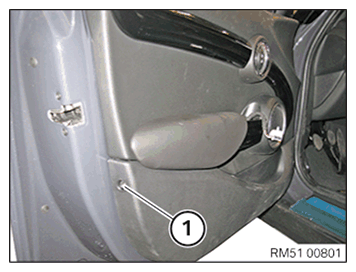

Remove screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

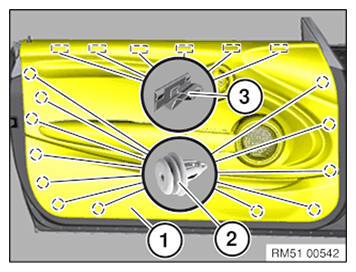

Release door trim panel (1) from clips (2) and clamps (3) using special tool 00 9 317.

Courtesy of BMW OF NORTH AMERICA, INC.

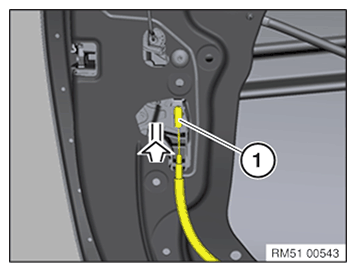

Detach cable (1) on door lock.

Unlock and disconnect all associated plug connections.

Release associated cable clips.

Remove door trim panel.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

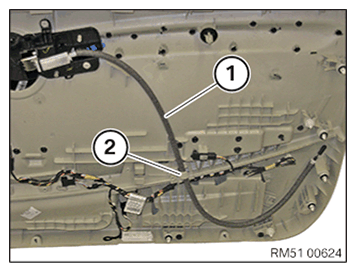

Make sure cable (1) is in correct position in holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Attach cable (1) on door lock.

Connect all associated plug connections.

Courtesy of BMW OF NORTH AMERICA, INC.

Engage door trim panel (1) in clips (2) and clamps (3).

Courtesy of BMW OF NORTH AMERICA, INC.

F55  only:

Tighten screw (1).

Install cover.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Engage cover (1).

Tighten down screws (2).

Courtesy of BMW OF NORTH AMERICA, INC.

With door open, check function of door opener and outer door handle!

Required reworking:

• Install DOOR ENTRY LIGHTING
• Install POWER WINDOW SWITCH .
