Replacing rear left or right power electric windows (Cooper Convertible)

Special tools required:

• 2 360 051

Preliminary work needed:

• Remove FLAT MOTOR for rear power windows.

Removal:

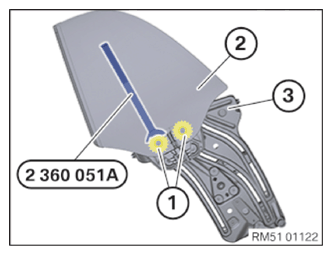

Unscrew multi-tooth screw (1) using special tool 2 360 051 A.

Remove side window glass (2) from power window (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

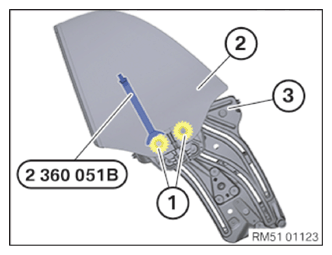

Install side window glass (2) on power window (3).

Tighten multi-tooth screws (1) using special tool 2 360 051 B.

Tightening torque 51 37 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install the FLAT MOTOR for the rear power windows.
• Adjust the REAR SIDE WINDOW .
