Removing and installing/replacing ornamental grille frame (Cooper Convertible)

Preliminary work needed:

Removal:

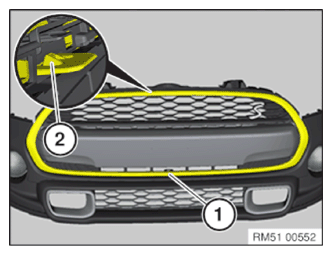

Release the trim (1) from the detents (2) from the back and remove.

G13797302Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Engage trim (1) on detents (2).

NOTE: Detents (2) must not be damaged.
G13797303Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:
