61 61 021 Replacing left or right windshield wiper blade

IMPORTANT: Make sure the wiper arm does not come in contact with the windshield without its wiper blade.

NOTE: In the event of a customer complaint regarding the cleaning or wiping performance or noise build-up (scratching, squeaking) by the wiper blades, proceed as follows: First check whether the complaint is caused by dirt (preservation wax on new vehicles, resins or other environmental influences) on the windshield; if necessary, clean the windshield thoroughly! Replace the wiper blades only if cleaning the windshield fails to remedy the situation.

Removal:

Remove ID transmitter (ignition key).

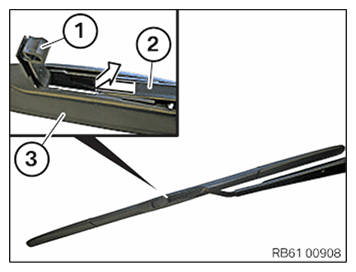

Fold out wiper arm (2).

Open lock (1).

Feed wiper arm (2) in the direction of the arrow out of the wiper blade (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed wiper arm (2) against the direction of the arrow into the wiper blade (3).

Close lock (1).

Fold in wiper arm (2).

NOTE: Make sure wiper blade (3) is seated correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Before switching on terminal "R" or the ignition or starting the engine, you must fold the wiper arms onto the windshield to avoid any damage.
