Removing and installing/replacing oil-to-water heat exchanger (B36 engine) (Cooper base)

Risk of scalding!

Only perform this repair work after the engine has cooled down.

Recycling:

Catch and dispose of drained coolant.

Observe country-specific waste disposal regulations.

Preliminary work needed:

• Remove FULL-FLOW OIL FILTER .

Removal:

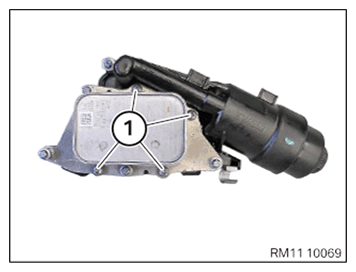

Unscrew the screws (1).

Remove heat exchanger.

Courtesy of BMW OF NORTH AMERICA, INC.

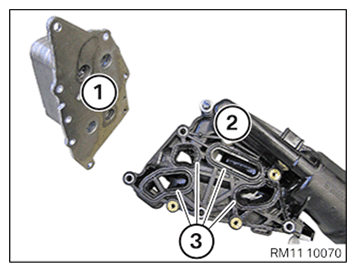

Replace gaskets (3) on full-flow oil filter (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace gaskets (3).

Place oil-to-water heat exchanger (1) on full-flow oil filter (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Tightening torque: 11 42 8AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install FULL-FLOW OIL FILTER .
