Checking cylinder head on watertightness (B36 engine) (Cooper base)

Preliminary work needed:

• Remove CYLINDER HEAD .
• Remove ALL HYDRAULIC VALVE CLEARANCE COMPENSATING ELEMENTS .
• Remove ECCENTRIC SHAFT .

Unscrew nuts (1).

Tightening torque 11 62 2AZ .

Remove trim strip (2).

Courtesy of BMW OF NORTH AMERICA, INC.

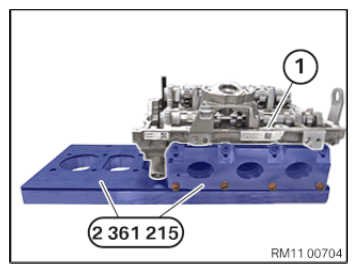

Position and fasten cylinder head (1) on special tool.

Position and fasten special tool on the exhaust side of the cylinder head (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Disassemble connecting bracket (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Attach and fasten special tool to cylinder head.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Remove all special tools
• Install ALL HYDRAULIC VALVE CLEARANCE COMPENSATING ELEMENTS .
• Install ECCENTRIC SHAFT .
• Install the CYLINDER HEAD .
• Assemble engine
