Replacing Front Left Wheel Arch (Cooper, Cooper S, John Cooper Works)

Observe procedure of REPAIR STAGE 3 .

Read contents of BODY, GENERAL .

Use only an approved SPOT WELDER  for repairs!

Strip down vehicle. Refer to STRIPPING OPERATIONS - REPLACING FRONT LEFT WHEEL ARCH  or STRIPPING OPERATIONS - REPLACING FRONT RIGHT WHEEL ARCH .

Place vehicle on straightening bench.

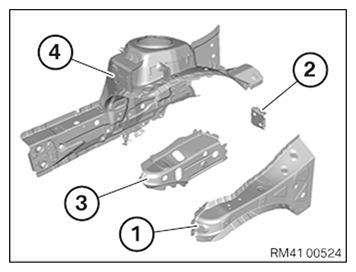

The following new parts are required (see Electronic Parts Catalog):

  1. Carrier support, outer wheel arch section
  2. Carrier support bulkhead
  3. Wheel arch inner section support member
  4. Front shock tower
  5. Support bracket shaped part
G11648800Courtesy of BMW OF NORTH AMERICA, INC.

Following CONSUMABLES  are required:

Material Quantity
Adhesive K1 1
Blind rivet N1 8
Blind rivet N7 20
Cavity sealing wax remover 1
Cleaning agent R1 1
Sealant D1 1

Removal:

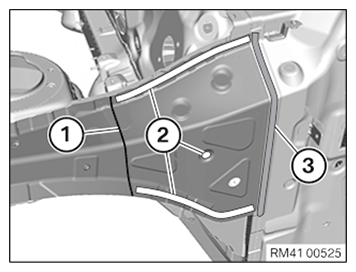

Mark severance cut (1) as pictured and cut.

Open welded connections in areas (2).

RELEASE  spot-welded adhesive joints in area (3) and remove partial carrier support section.

G11648702Courtesy of BMW OF NORTH AMERICA, INC.

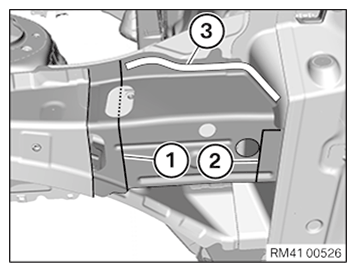

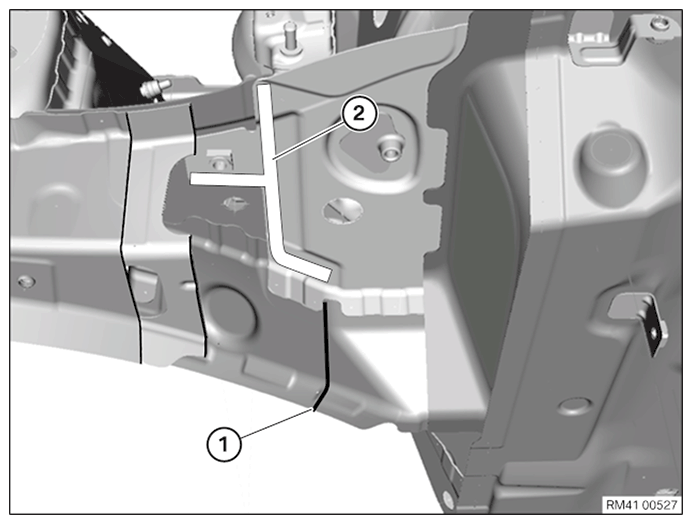

Mark severance cuts (1) and (2) and cut according to schematic diagram.

Release welded connections in area (3) and remove partial inner carrier support part section.

NOTE: New part is installed with overlap in area of severance cut (2).
G11648703Courtesy of BMW OF NORTH AMERICA, INC.
G11648704Courtesy of BMW OF NORTH AMERICA, INC.

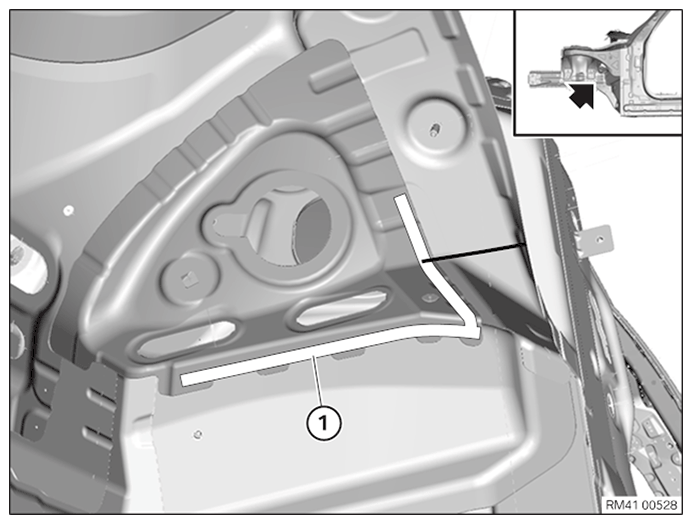

Mark severance cut (1) as pictured and cut.

Open welded connections in area (2).

G11648705Courtesy of BMW OF NORTH AMERICA, INC.

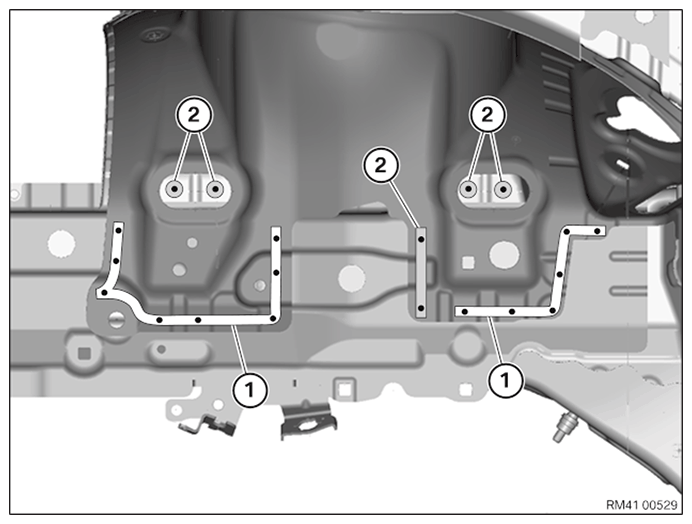

Open welded connections in area (1).

G11648805Courtesy of BMW OF NORTH AMERICA, INC.

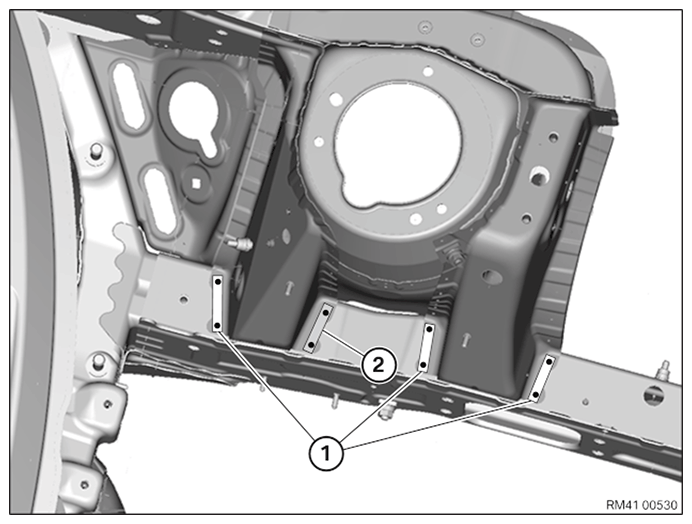

Open welded connections in areas (1) and (2).

NOTE: Do not drill into or through the engine mount when releasing the welded connections!
G11648806Courtesy of BMW OF NORTH AMERICA, INC.

Release welded connections in areas (1) and (2) and remove wheel arch.

NOTE: Do not drill into or through the engine mount when releasing the welded connections!

Preparation of new part:

Center-punch welded connections in areas (1) and drill through with Ø 6.8 mm drill. Remove the remaining areas of the welded connections, which were not removed with the drill, from the inside of the engine mount by grinding them off.

NOTE: The new part is joined in areas (1) by adhesive riveting. The bores in areas (1) are required for lining the blind rivets. Ø 6.8 mm bores are transferred to the engine mount when adjusting the new part.
G11648807Courtesy of BMW OF NORTH AMERICA, INC.

Center-punch welded connections in areas (1) and drill through with Ø 6.8 mm drill.

Remove the remaining areas of the welded connections, which were not removed with the drill, from the inside of the engine mount by grinding them off.

NOTE: The new part is joined in areas (1) by adhesive riveting. The bores in areas (1) are required for lining the blind rivets. Ø 6.8 mm bores are transferred to the engine mount when adjusting the new part.
G11648808Courtesy of BMW OF NORTH AMERICA, INC.
G13796995Courtesy of BMW OF NORTH AMERICA, INC.

Adjust new parts to fit with alignment bracket or universal mount and secure.

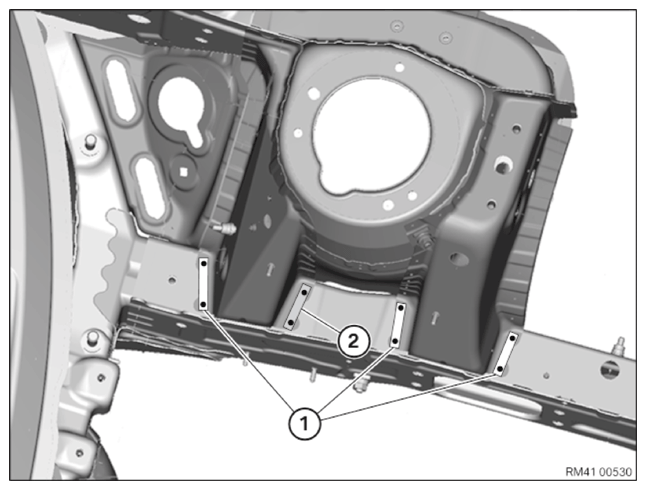

Transfer Ø 6.8 mm bores to engine mount in areas (1) and (2).

G13796996Courtesy of BMW OF NORTH AMERICA, INC.

Transfer Ø 6.8 mm bores to engine mount in areas (1) and (2).

G11648705Courtesy of BMW OF NORTH AMERICA, INC.

In area (1), prepare new part for joining by welding.

G11648716Courtesy of BMW OF NORTH AMERICA, INC.

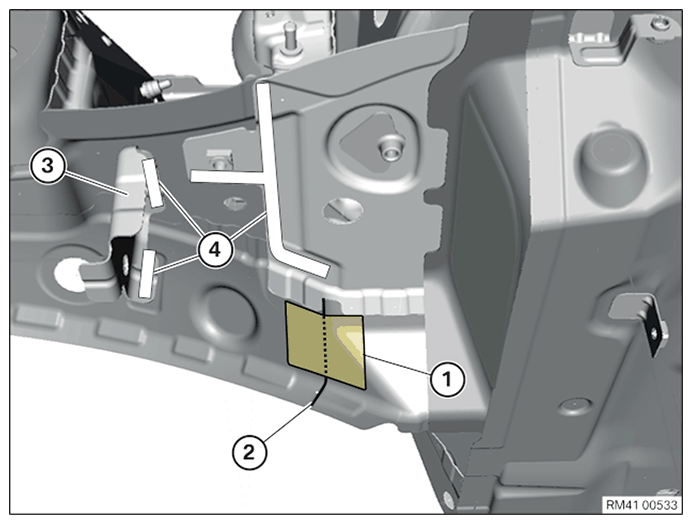

Produce REINFORCEMENT PLATE  (1) for severance cut (2) and adjust.

Adjust bulkhead (3).

In areas (4), prepare new parts for joining by welding.

Mark severance cut on carrier support inner section according to severance cut on vehicle +20 mm material extra and cut.

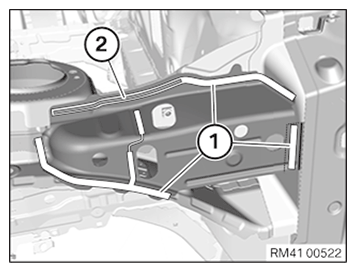

Adjust new part and prepare in areas (1) and (2) for joining by welding.

NOTE: Note PROCEDURE  on replacement of spot- welded adhesive joints in area (2).
G11648717Courtesy of BMW OF NORTH AMERICA, INC.

Install new part in areas (1) and (2), prepare for joining by welding.

Remove new parts and deburr bores.

NOTE: Follow procedure for replacement of spot- welded adhesive joints in area (2).

(3) = position of cavity sealing.

G11648718Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Structure bonding!
OBSERVE  preparation of bonding surfaces.

Installation:

Clean bonding surfaces on vehicle and on new part with cleaning agent R1.

Apply adhesive to bonding surfaces.

Install wheel arch with alignment bracket or universal mount.

G11648805Courtesy of BMW OF NORTH AMERICA, INC.

Rivet the new part with the blind rivet N7 in the areas (1).

Use the blind rivet N1 in the areas (2).

G11648806Courtesy of BMW OF NORTH AMERICA, INC.

Rivet the new part with the blind rivet N7 in the areas (1).

In area (2), use blind rivet N1.

G11648705Courtesy of BMW OF NORTH AMERICA, INC.

Weld new part in area (1).

G11648716Courtesy of BMW OF NORTH AMERICA, INC.

Install reinforcement plate (1) and weld with severance cut (2). Weld new part and bulkhead (3) in the areas (4).

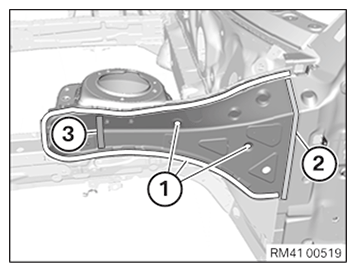

Install new part, weld in areas (1) and (2).

G11648717Courtesy of BMW OF NORTH AMERICA, INC.

Apply sealant on CAVITY SEALING  (3).

Install new part, weld in areas (1) and (2).

G11648718Courtesy of BMW OF NORTH AMERICA, INC.
