Removing and installing/replacing retractor (Cooper Convertible)

Preliminary work needed:

• Remove rear tailgate lid TRIM PANEL .

Removal:

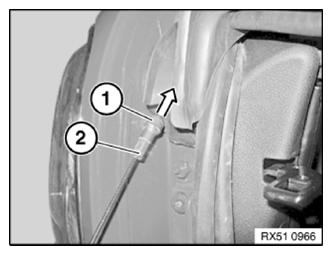

Unlock clamp (1) and shift it in arrow direction.

Remove the Bowden cable retractor (2) from the ball pivots.

Courtesy of BMW OF NORTH AMERICA, INC.

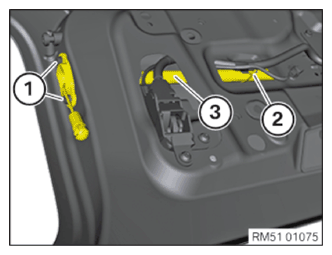

Unscrew the screws (1).

Release cable tie (2) and remove retractor (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install retractor (3).

Tighten down screws (1).

Tightening torque 51 24 8AZ .

Mount cable tie (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Shift the clamp (1) against the direction of the arrow.

Engage Bowden cable retractor (2) on the ball pivots.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install the tailgate lid TRIM PANEL .
