61 20 900 Disconnecting and connecting battery ground lead: Overview

WARNING: FOLLOW THE SAFETY REGULATIONS for handling the vehicle battery.
Follow the notes for DISCONNECTING AND CONNECTING THE VEHICLE BATTERY.
Follow instructions on INTELLIGENT BATTERY SENSOR (IBS) .

Removal:

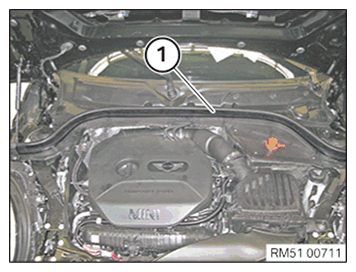

Partially detach seal (1).

Courtesy of BMW OF NORTH AMERICA, INC.

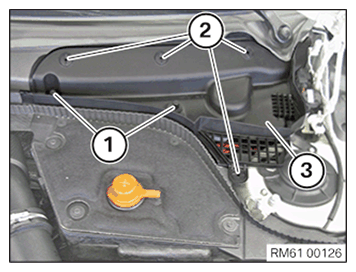

Loosen cap nuts (1).

Open locks (2) by turning them anti-clockwise.

Remove windshield panel cover (3).

Courtesy of BMW OF NORTH AMERICA, INC.

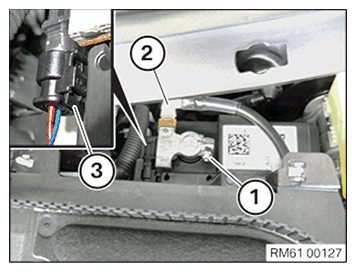

Loosen nut (1).

Remove battery ground lead (2).

Unlock connector (3) from IBS and disconnect.

Secure battery ground lead (2) at the side.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connect the connector (3) to the IBS.

Join battery ground lead (2).

Tighten nut (1).

Tightening torque 61 21 1AZ.

Courtesy of BMW OF NORTH AMERICA, INC.

Thread in the windshield panel cover (3).

Turn the locks (2) to the right until the stop is reached.

Tighten cap nuts (1).

Tightening torque 61 21 6AZ.

Courtesy of BMW OF NORTH AMERICA, INC.

Join gasket (1).

Courtesy of BMW OF NORTH AMERICA, INC.
