Install side airbag on front seat

WARNING: Pyrotechnic components.
Danger! Immobilization period-threatening injuries!

All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
Replace any damaged part or ones that have been dropped.
For additional information see: 7200... SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS (COUNTRYMAN 2017-2023, EXCEPT PHEV) .

WARNING: Airbag unit.
Danger! Immobilization period-threatening injuries!

Before performing any work on the airbag, always disconnect the battery ground lead from the battery.
Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
For additional information see: 7200... SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS (COUNTRYMAN 2017-2023, EXCEPT PHEV)

Carefully feed in the side airbag (1) upwards in the cover pocket (2) and correctly position on the backrest frame.

Courtesy of BMW OF NORTH AMERICA, INC.
Tighten nuts (1).

TIGHTENING TORQUE SPECIFICATIONS

Side airbag on rear seat backrest
Nut	Tightening torque	6.5Nm

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the left and right side.

Attach the seat cover (1) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in cable (5) and attach in all holders.
Insert connector (4) in the connector housing (1), until the locks (3) audibly engage.
Install the cable tie (2).
Engage connector housing (1) in the holder.
Variant with seat heating:
Connect connectors (6) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

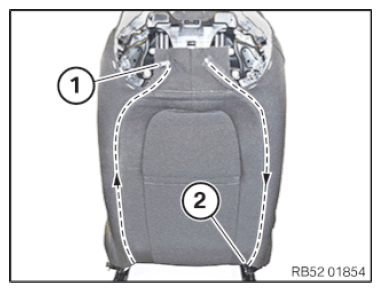

Open zipper (1) in the arrow direction.
Open zipper (2) in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
