Installing wiper arm for rear wiper

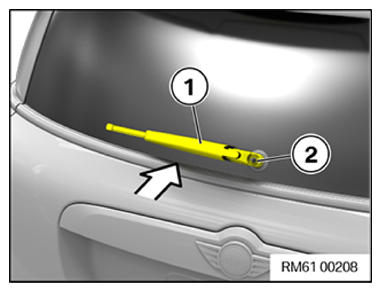

• Mount the wiper arm for the rear wiper (1) on the wiper pivot in arrow direction and align parallel to the lower rear window edge.
• Tighten the nut (2) on the wiper arm for the rear wiper (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Wiper arm for rear wiper
  Combination hexagon nut	13Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to CLOSE THE PROTECTIVE CAP .
