61 31 052 Removing and installing/replacing center console control panel (Countryman 2017-2023, except PHEV)

Preliminary work needed:

• Remove DECORATIVE STRIP ON DASHBOARD ON RIGHT .

Removal:

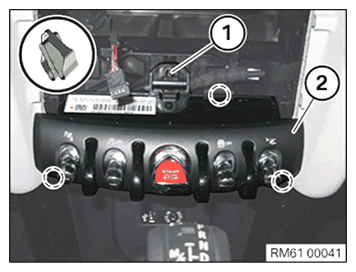

Remove screw (1).

Unclip the center console control panel (2) from center console.

Courtesy of BMW OF NORTH AMERICA, INC.

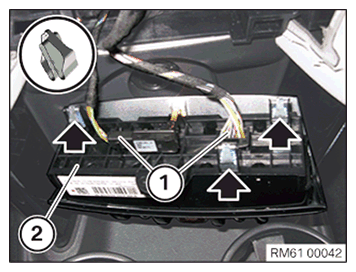

Unlock and disconnect connector (1) on center console control panel (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connect connector (1) to center console control panel (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Clip in the center console control panel (2) into the center console.

Tighten screw (1).

Tightening torque 61 31 4AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install DECORATIVE STRIP ON RIGHT DASHBOARD .
