Body Equipment -- Repair Cooper Countryman (F60)
>>
51 16 Mirrors, Decorative Strips, Ashtrays, Consoles
>>
51 16 163 Removing and installing rear center console trim (Countryman 2017-2023, except PHEV)
>>
Installing the rear center console trim
Installing the rear center console trim

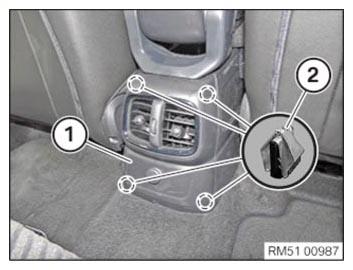

Connect the associated connectors to the center console trim (1).
Clip in the center console trim (1) toward the front with the clamps (2).
Courtesy of BMW OF NORTH AMERICA, INC.
