BODY GAP DIMENSIONS REP-REP-RAF6041-4106200 - V.1 (Countryman 2017-2023, except PHEV)

The dimensions specified in this document are applicable at an object temperature of 20 °C. The aim of adjustment is to achieve a uniform gap.

Symmetry of the gaps between left and right sides of the vehicle has top priority.

For door gaps, the maximum deviation between the front and rear door gaps must be 1.0 mm.

No gap dimension are specified for components which cannot be adjusted.

All data in mm.

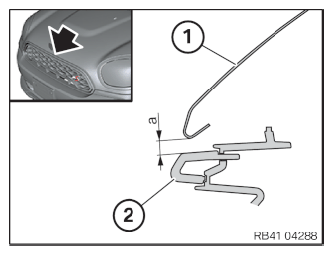

1. Bonnet
2. Radiator grille

Dimension a=5.5±1.6

Courtesy of BMW OF NORTH AMERICA, INC.

1. Bonnet
2. Bumper panel, front

Dimension a=5.5±1

Dimension a=0±1.7

Courtesy of BMW OF NORTH AMERICA, INC.

1. Bonnet
2. Fender

Dimension a=4.4±1.4

Dimension b = 1.3±1.5

Courtesy of BMW OF NORTH AMERICA, INC.

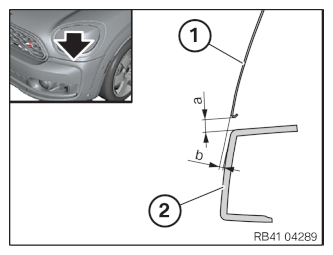

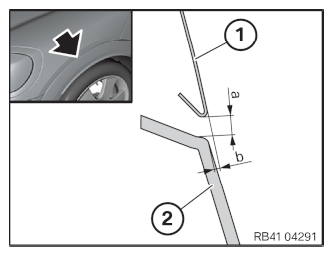

1. Bonnet
2. Wheel arch trim

Dimension a=5.0±2

Dimension b = 0.7±1.7

Courtesy of BMW OF NORTH AMERICA, INC.

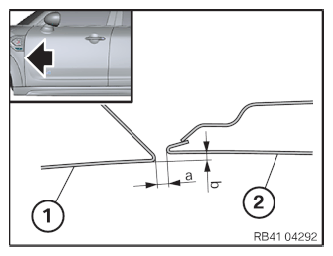

1. Fender
2. Door, front

Dimension a=4±1

Dimension b=Setpoint value 0 upper tolerance +1.5 lower tolerance -0.3

Courtesy of BMW OF NORTH AMERICA, INC.

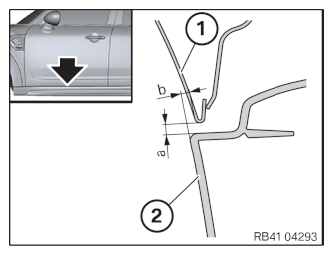

1. Door, front
2. Side sill trim panel

Dimension a=4.0±0.8

Dimension b=setpoint value 2.5±1.7

Courtesy of BMW OF NORTH AMERICA, INC.

1. Door, front
2. Rear door

Dimension a=4.5±0.8

Dimension b=Setpoint value 0 upper tolerance +1.5 lower tolerance -0.3

Courtesy of BMW OF NORTH AMERICA, INC.

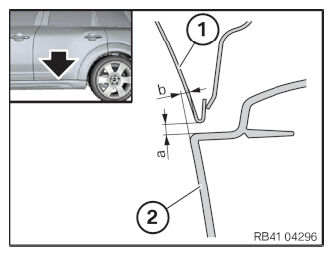

1. Rear door
2. Side sill trim panel

Dimension a=4.0±1.5

Dimension b = 5±1.6

Courtesy of BMW OF NORTH AMERICA, INC.

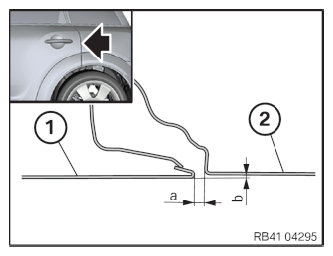

1. Rear door
2. Rear quarter panel

Dimension a=4± 1.1

Dimension b = 0±0.9

Courtesy of BMW OF NORTH AMERICA, INC.

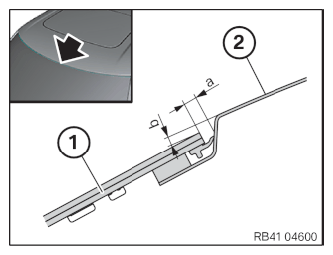

1. Windshield
2. Roof outer skin

Dimension a=4.6±1.2

Dimension b = 3.2±1.4

Courtesy of BMW OF NORTH AMERICA, INC.

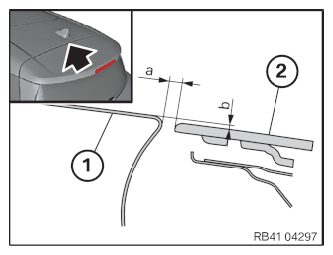

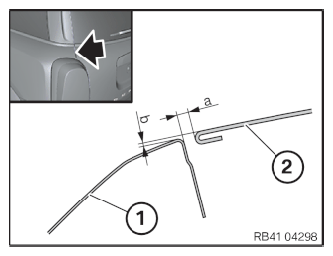

1. Roof outer skin
2. REAR SPOILER

Dimension a=5.5±1.4

Dimension b = 1.0±1.8

Courtesy of BMW OF NORTH AMERICA, INC.

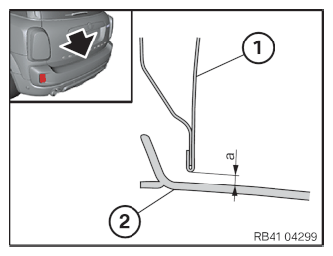

1. Tailgate
2. Bumper panel, rear

Dimension a=5.0±1.4

Courtesy of BMW OF NORTH AMERICA, INC.

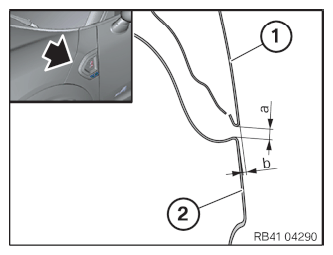

1. Rear quarter panel
2. Tailgate

Dimension a=3.5±1.0

Dimension b = 0.4±1.0

Courtesy of BMW OF NORTH AMERICA, INC.

1. Roof outer skin
2. Glass slide/tilt sunroof panel, front

Dimension a = setpoint value 1.0±1.0

Courtesy of BMW OF NORTH AMERICA, INC.

1. Glass slide/tilt sunroof panel, front
2. Glass slide/tilt sunroof panel, rear

Dimension a=1.0±1.0

Courtesy of BMW OF NORTH AMERICA, INC.

1. Glass slide/tilt sunroof panel, rear
2. Roof outer skin

Dimension a=1.0±1.0

Courtesy of BMW OF NORTH AMERICA, INC.
