Z3 Fuse box

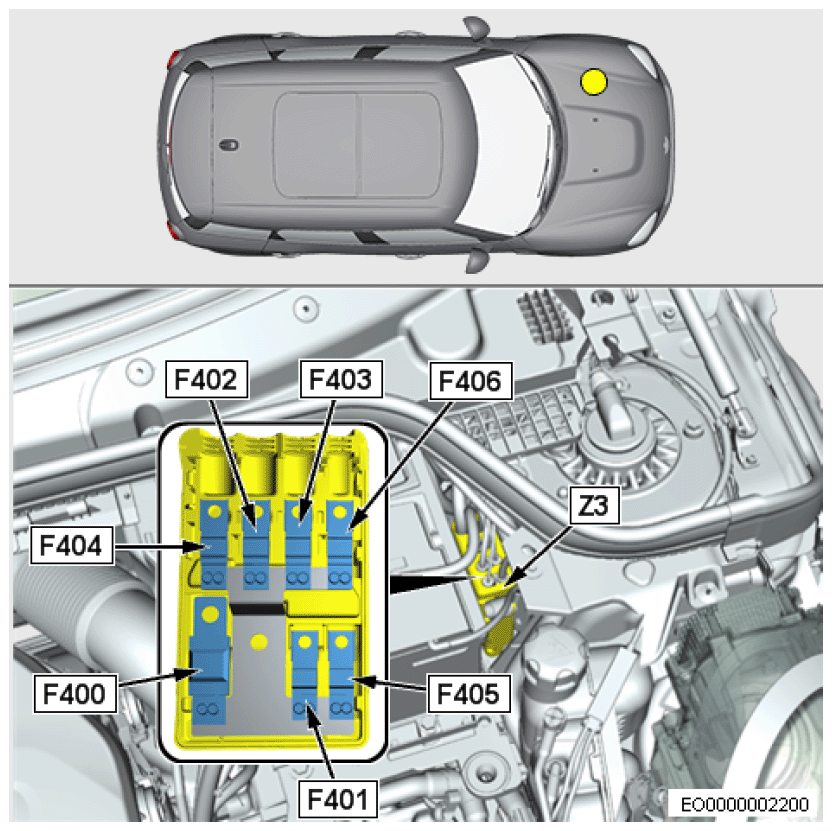

Fig 1: Z3 Fuse Box Fuse/Relay ID'S Location (1 Of 3)
G16335855Courtesy of BMW OF NORTH AMERICA, INC.

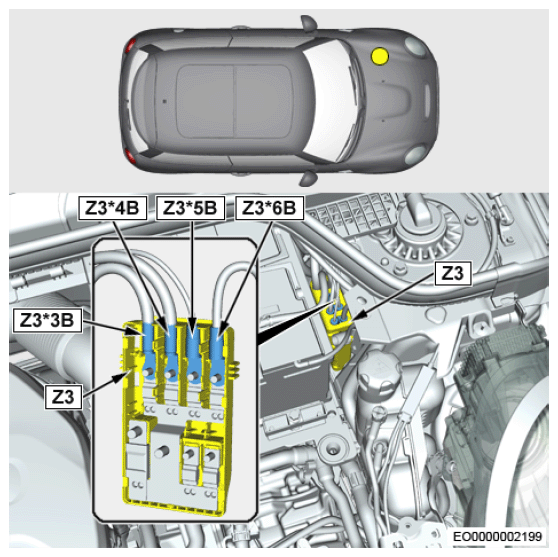

Fig 2: Z3 Fuse Box Fuse/Relay ID'S Location (2 Of 3)
G16335856Courtesy of BMW OF NORTH AMERICA, INC.

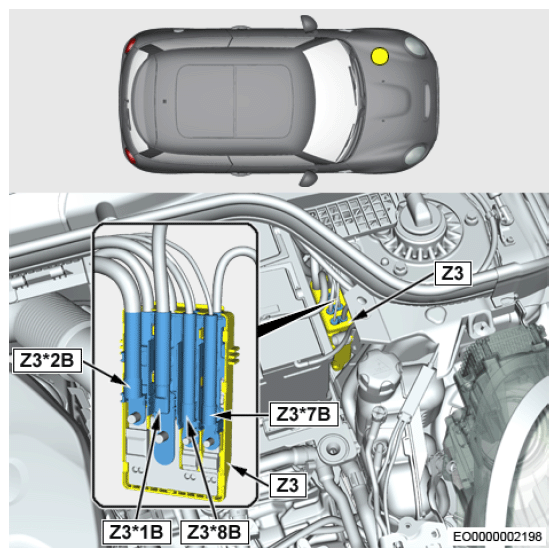

Fig 3: Z3 Fuse Box Fuse/Relay ID'S Location (3 Of 3)
G16335857Courtesy of BMW OF NORTH AMERICA, INC.
