If installed: Cutting out the hole for the tweeter

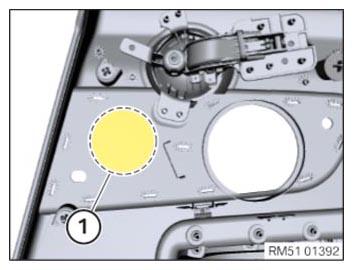

- Cut out the door trim panel in area of mark (1)
using a suitable tool (e.g. body saw).
Diameter: 73 mm diameter
Follow-up work
- Refer to INSTALLING THE DECORATIVE STRIP .
- Refer to REFIT SPEAKER COVER .
- Refer to INSTALLING TWEETER FROM THE REAR DOOR TRIM PANEL .
- Refer to INSTALL INNER DOOR OPENER .
- Refer to INSTALLING THE DECORATIVE RING ON THE INNER DOOR OPENER .
- Refer to INSTALL REAR DOOR TRIM .
