Body Equipment -- Repair Cooper Countryman (F60)
>>
51 22 Door Locks, Handles, Fittings, Rear
>>
51 22 170 Removing and installing/replacing the outside door handle at the rear left or right (Countryman 2017-2023, except PHEV)
>>
Install the rear outer door handle
Install the rear outer door handle
If necessary, connect and lock any associated connectors.

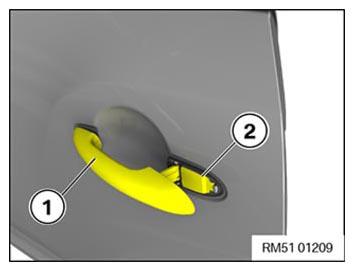

Feed the outside door handle (1) into the front opening.
Courtesy of BMW OF NORTH AMERICA, INC.

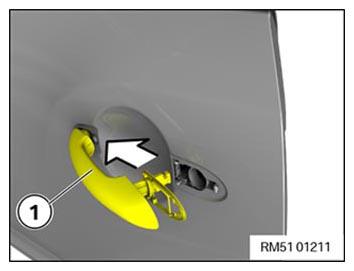

Pull the outside door handle (1) and feed in the locking plate (2).
Courtesy of BMW OF NORTH AMERICA, INC.

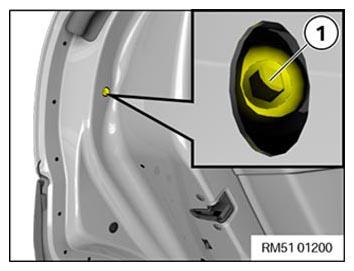

Tighten the bolt (1) and mount the cover.
TIGHTENING TORQUE SPECIFICATIONS
Outside door handle to door
screw
3Nm
Courtesy of BMW OF NORTH AMERICA, INC.
