Install the front outside door handle
- If necessary, connect and lock any associated connectors.

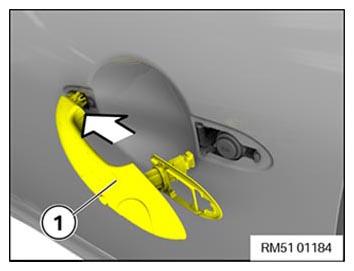

- Feed the outside door handle (1) into the front opening.
- Pull the lock actuation (1) outward with a rope (2) and hold it in place.
- Insert the outside door handle and feed it into the lock actuation (1) correctly.
- Pull the cord (2) out.

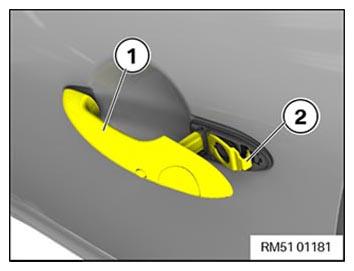

- Pull the outside door handle (1) and feed in the locking plate (2).

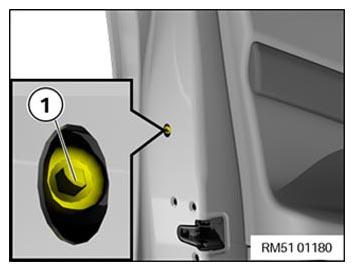

- Tighten the bolt (1) and mount the cover,TIGHTENING TORQUE SPECIFICATIONS
Outside door handle to door screw 3Nm
