Remove center armrest

Preliminary work

• Refer to REMOVING THE REAR CENTER CONSOLE TRIM .

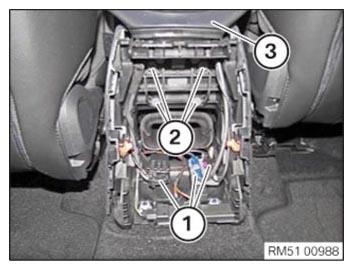

• Unlock and disconnect plug connections (1).
• Loosen screws (2).
• Remove the center armrest (3) toward the top.

  Courtesy of BMW OF NORTH AMERICA, INC.
