Body Equipment -- Repair Cooper Countryman (F60)
>>
51 13 Trim Parts, Covers, Handle Strip
>>
51 13 106 Removing and installing/replacing trim on left or right rear door (Countryman 2017-2023, except PHEV)
>>
Remove the trim on the rear door
Remove the trim on the rear door
Precondition
Door is open.

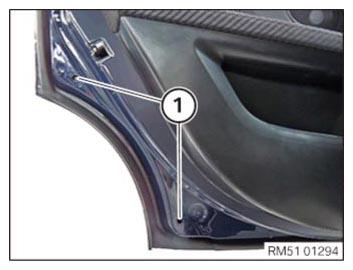

Remove the screw cover caps and loosen the underlying screws (1).
Courtesy of BMW OF NORTH AMERICA, INC.

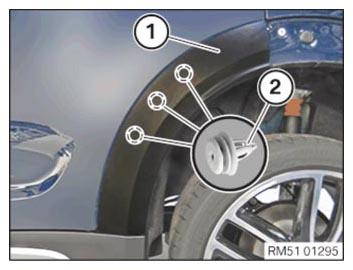

Unclip the trim (1) on the clips (2).
Courtesy of BMW OF NORTH AMERICA, INC.
