Installing the fanfare horn
NOTE:
TECHNICAL INFORMATION
Only replace the fanfare horn complete with the holder.
Only replace the fanfare horn complete with the holder.

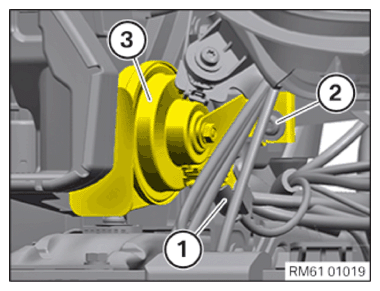

- Position fanfare horn (3).
- Tighten down screw (2).TIGHTENING TORQUE SPECIFICATIONS
Fanfare horn on headlight bracket M6x20 Tightening torque 6Nm - Connect connector (1).
Follow-up work
- Refer to INSTALLING BUMPER COVER, FRONT .
