Install the gasket on the glass slide/tilt sunroof panel in the rear
NOTE:
TECHNICAL INFORMATION
The repair notes of bonded seals form the basis for these repair notes and must be observed without fail.
For additional information see: 54 10... REPAIR NOTES FOR BONDED SEALS
The repair notes of bonded seals form the basis for these repair notes and must be observed without fail.
For additional information see: 54 10... REPAIR NOTES FOR BONDED SEALS
- Clean bonding surface.

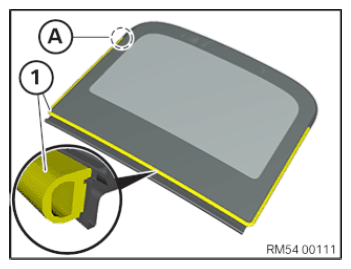

- Glue the gasket (1)
on beginning in area (A)
.
Bond the gasket (1) slightly compressed and in sections.
Follow-up work
- Refer to CHECKING THE SETTING OF THE PANORAMA GLASS ROOF .
- Refer to ADJUSTING REAR GLASS SLIDE/TILT SUNROOF PANEL .
- Refer to INSTALL REAR GLASS SLIDE/TILT SUNROOF PANEL .
