52 26 414 Replacing backrest cover for rear seat, center (Countryman 2017-2023, except PHEV)

Preliminary work needed:

• REMOVING  rear middle head restraint
• Remove center GUIDE SLEEVES .
• Remove REAR PANEL ON CENTER REAR SEAT BACKREST .
• Remove CENTER ARMREST .

Removal:

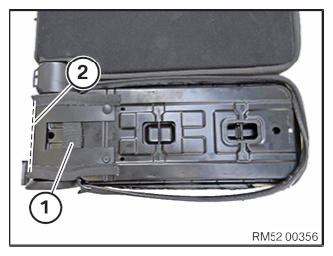

Undo Velcro fastener (1) and feed out loops at the side.

Detach backrest cover in area (2).

Courtesy of BMW OF NORTH AMERICA, INC.

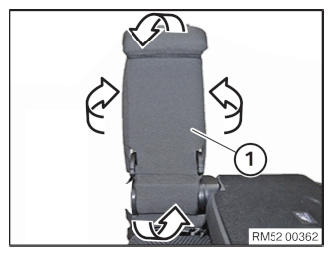

Remove backrest cover (1) in direction of the arrow starting from below.

Courtesy of BMW OF NORTH AMERICA, INC.

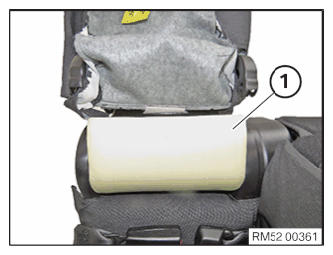

Remove foam part (1) and insert into new cover.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

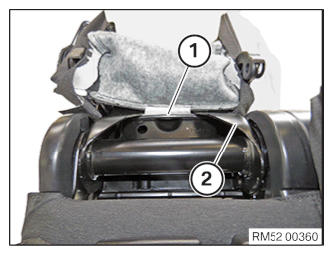

Attach top welt (1) behind the guides (2).

Courtesy of BMW OF NORTH AMERICA, INC.

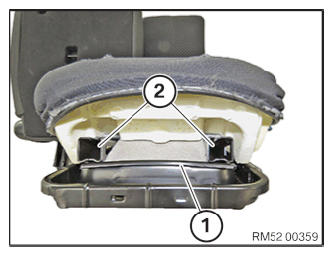

Attach bottom welt (1) in frame (2).

Courtesy of BMW OF NORTH AMERICA, INC.

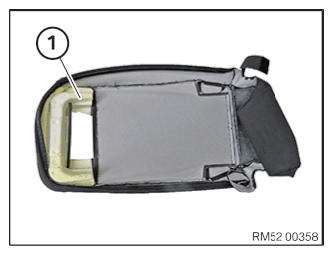

Insert foam part (1).

Courtesy of BMW OF NORTH AMERICA, INC.

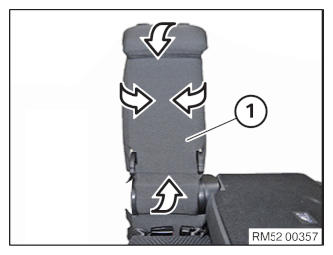

Position cover (1) starting from the top and shifting in the arrow direction.

Install REAR PANEL ON CENTER REAR SEAT BACKREST .

Courtesy of BMW OF NORTH AMERICA, INC.

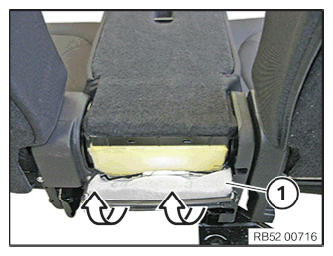

Press welt of cover (1) into frame in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install CENTER GUIDE SLEEVES .
• Install CENTER HEAD RESTRAINT .
• Install CENTER ARMREST .
