When replacing the lower part of the rear spoiler: Remount components

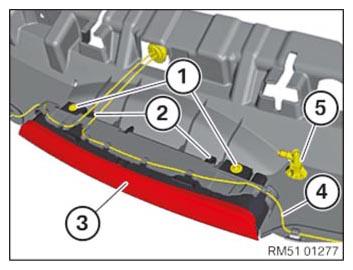

Loosen screws (1).
Release the locks (2) and remove the auxiliary brake light (3).
Unclip the antenna (4).
Unclip the spray nozzle (5).
Renew the lower part of the rear spoiler.
Parts: Lower part of the rear spoiler
Snap the auxiliary brake light (3) into the lower section of the rear spoiler.

Tighten down screws (1).

G15373500

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

3. Brake lamp
Oval-head screw
	tightening torque	2.5Nm

Clip the antenna (4) into the lower section of the rear spoiler.
Clip the spray nozzle (5) into the lower section of the rear spoiler.
