General Electrical System -- Repair Cooper Countryman (F60)
>>
61 31 Switch, Sensor
>>
61 31 134 Removing and installing/replacing USB audio interface connecting socket (Countryman 2017-2023, except PHEV)
>>
Remove the connecting socket of the USB audio interface
Remove the connecting socket of the USB audio interface
Preliminary work
Refer to
REMOVING THE MEDIA TRIM
.

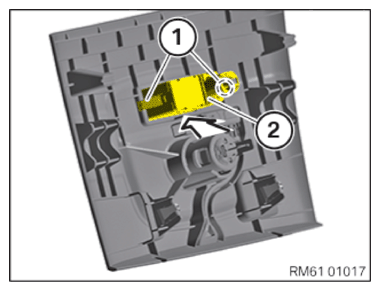

Detach the clamps (1) and remove the connecting socket of the USB audio interface (2) in the direction of the arrow.
Courtesy of BMW OF NORTH AMERICA, INC.
