Removing and installing (replacing) the driving dynamics control (Countryman 2017-2023, except PHEV)

Removal:

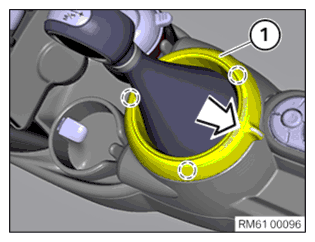

Unclip bezel with driving dynamics control (2) towards the top.

Courtesy of BMW OF NORTH AMERICA, INC.

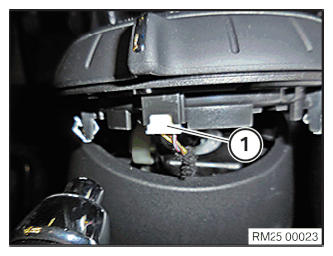

Unlock and disconnect connector on driving dynamics control (1).

Courtesy of BMW OF NORTH AMERICA, INC.

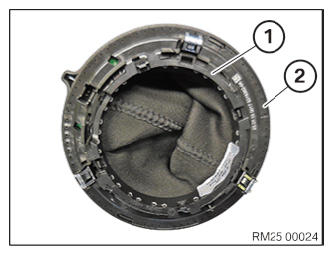

Detach retaining ring with bellows (1) from bezel with driving dynamics control (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

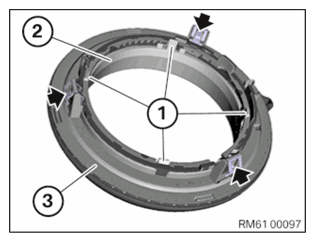

NOTE: The clamps on the holder (3) must not be damaged or missing.
Detents (1) on the bezel (2) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

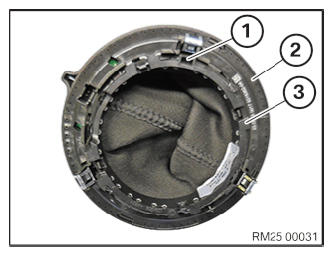

Insert retaining ring with bellows (3) into bezel with driving dynamics control (2).

NOTE: The guide lug (1) must snap into place in the guide.

Courtesy of BMW OF NORTH AMERICA, INC.

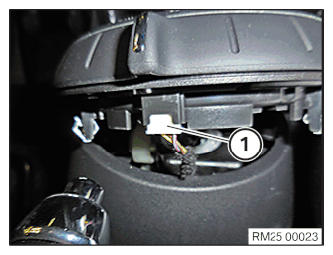

Connect connector (1) to driving dynamics control.

Courtesy of BMW OF NORTH AMERICA, INC.

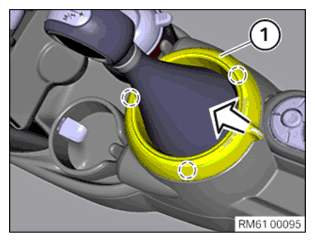

Clip in bezel with driving dynamics control (2) by pushing it down.

Courtesy of BMW OF NORTH AMERICA, INC.
