General Electrical System -- Repair Cooper Countryman (F60)
>>
61 31 Switch, Sensor
>>
61 31 037 Removing and installing/replacing light control unit (Countryman 2017-2023, except PHEV)
>>
Installing the light operating unit
Installing the light operating unit

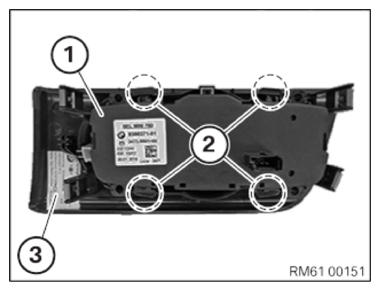

Clip in the light operating unit (1) in the marked areas (2) of the trim (3).
Courtesy of BMW OF NORTH AMERICA, INC.
Follow-up work
Refer to
INSTALLING THE TRIM FOR THE LIGHT OPERATING UNIT
.
