Removing and attaching/replacing windshield panel cover (Front)

Preliminary Work

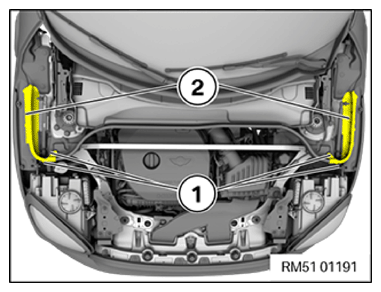

• Unclip the front attachments (1) of the seals of the front side panel (2) on the left and right.

  Courtesy of BMW OF NORTH AMERICA, INC.

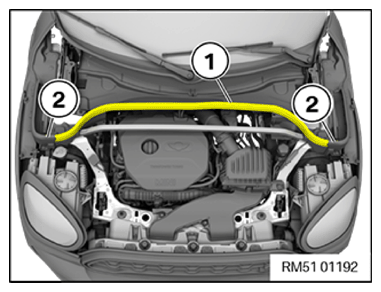

• Raise the hood seal in the rear (1) to the top and remove it below the sealings of the front side panel (2) on the left and right.

  Courtesy of BMW OF NORTH AMERICA, INC.

Main Works

• Pull the windshield panel cover (1) forward out of the cover (2).
• Open the clamp (3) and detach the hose pipes it holds.
• Remove the windshield panel cover (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the windshield panel cover (1) on the cover (2).
• Insert the hose pipes into the clamp (3) and close the clamp (3).
• Insert the windshield panel cover (1) toward the rear into the cover (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Insert rear hood seal (1) under the seals of the front side panel (2) on the left and right and attach it along the entire length.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clip in the front mountings (1) of the seal for the front side panel (2) on the left and right.

  Courtesy of BMW OF NORTH AMERICA, INC.
