Body Equipment -- Repair Cooper Countryman (F60)
>>
51 36 Side Window, Body, Manually Operated
>>
51 36 040 Removing and installing/replacing strip on side window at rear bottom left or right (Countryman 2017-2023, except PHEV)
>>
Install the strip on the bottom rear side window glass
Install the strip on the bottom rear side window glass

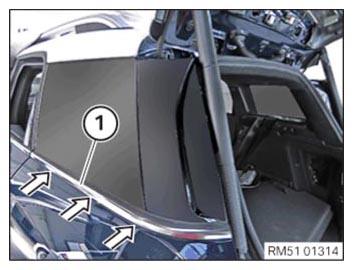

Clip in the strip (1) from the rear into the supporting strip, beginning in arrow direction.
Check the strip (1) in area of door and trunk lid for correct fit.
Courtesy of BMW OF NORTH AMERICA, INC.
