51 16 365 Removing and installing/replacing glove compartment cover (Countryman 2017-2023, except PHEV)

Preliminary work needed:

• Remove RIGHT GLOVE COMPARTMENT WITH HOUSING .

Removal:

Release damper (1) from retainer (2) and twist approx. 40° in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

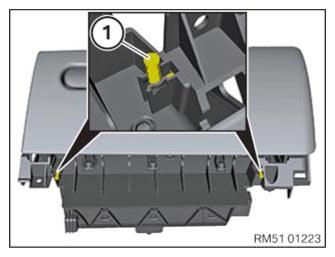

Detach and pull out the hinge bolts (1) toward the inside from the stop.

Repeat process on second hinge bolt (1).

Feed out glove box lid.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in glove box lid.

Insert hinge bolt (1) and clip in to stop.

Repeat procedure for second hinge bolt (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Lock damper (1) on retainer (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install RIGHT GLOVE COMPARTMENT WITH HOUSING .
