Remove fan cowl with electric fan

Preliminary work

• Refer to REMOVING INTAKE PORT .
• Refer to REMOVING INTAKE SILENCER HOUSING .
• Refer to REMOVING CROSS CONNECTION .

• Remove the seal (1) from the radiator.

Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock plug connection (1) and disconnect.
• Unlock and loosen the clamps (2).
• Feed out connector (1) and place to one side.
• Thread off coolant line (3) and place to the side.

Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

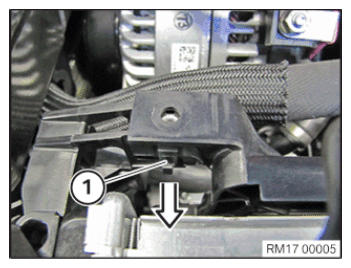

• Unlock the right lock (1) on the fan cowl in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock the left lock (1) on the fan cowl in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

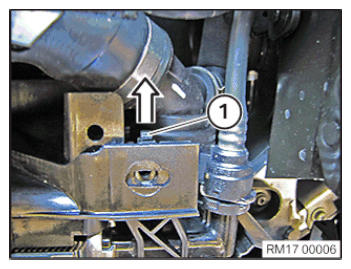

• Feed out fan cowl (1) upwards and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
