Installing the belt tensioner
NOTE:
TECHNICAL INFORMATION
The belt tensioner must be installed to relieve the tension. The special tools or transportation retainers must be installed for disassembly.
The belt tensioner must be installed to relieve the tension. The special tools or transportation retainers must be installed for disassembly.

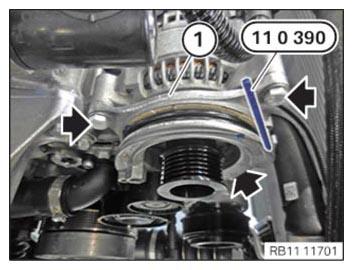

- Insert and install belt tensioner (1).
- Tighten the screws (arrows).
TIGHTENING TORQUES SPECIFICATION
| Belt tensioner to alternator | ||
|---|---|---|
| M8x30 | Tightening torque | 28Nm |
Follow-up work
- Refer to INSTALLING DRIVE BELT .
- Refer to INSTALLING THE ACOUSTIC COVER FOR THE ENGINE AT THE FRONT .
- Refer to INSTALLING THE FRONT RIGHT WHEEL ARCH COVER .
- Refer to INSTALLING THE FRONT RIGHT WHEEL .
