Removing and installing/replacing holder with rubber mount

Preliminary work needed:

• Remove front UNDERBODY PROTECTION .
• Remove THRUST FIELD .

Removal:

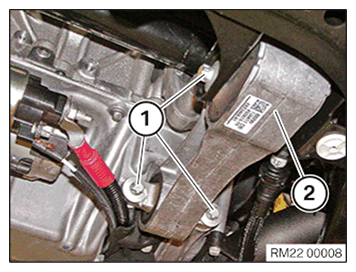

Undo bolts (1) and remove holder (2) with rubber mount.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

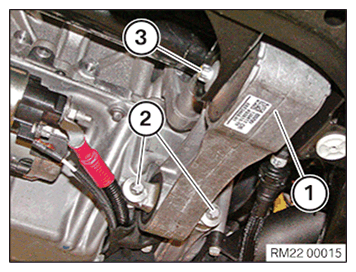

Install holder (1) with rubber mount.

Tighten down screws (2).

Tightening torque 22 11 4AZ .

Tighten screw (3).

Tightening torque 22 11 5AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install THRUST FIELD .
• Install front UNDERBODY PROTECTION .
