Removing and installing/replacing coolant feed line for exhaust turbocharger (B48 and B46 engine) (Cooper S and John Cooper Works)

Preliminary work needed:

• Drain COOLANT .
• Remove CATALYTIC CONVERTER .

Removal:

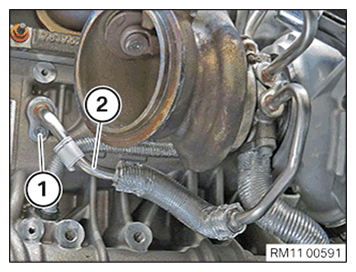

Remove screw (1).

Detach coolant line (2) from engine block.

Courtesy of BMW OF NORTH AMERICA, INC.

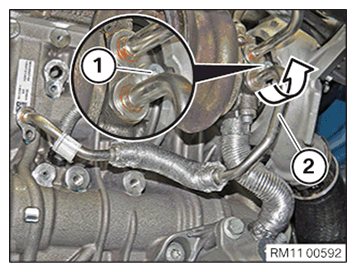

Remove screw (1).

Turn coolant line (2) in arrow direction and detach of exhaust turbocharger.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

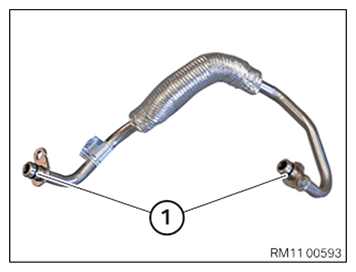

Parts:  Replace O-rings (1).

Courtesy of BMW OF NORTH AMERICA, INC.

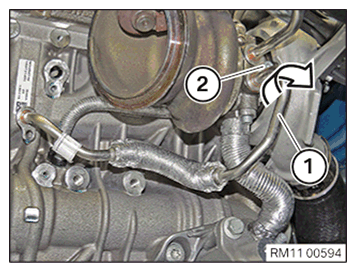

Connect coolant line (2) to exhaust turbocharger and turn coolant line in arrow direction.

Insert screw (1) and tighten.

Tightening torque 11 53 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Connect coolant line (2) to engine block.

Tighten screw (1).

Tightening torque 11 53 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install CATALYTIC CONVERTER .
• Add COOLANT .
