Tensioning/releasing of drive belt for alternator (B48 and B46 engine) (Cooper S and John Cooper Works)

Special tools required:

2 365 291
11 0 390

Preliminary work needed:

Remove front right WHEEL ARCH COVER .
Remove front UNDERBODY PROTECTION
Remove THRUST FIELD .

If necessary, carry out work with aid of a second person!

Removal:

Release expansion rivet (1).

Release screw (2).

Remove partition wall (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1).

Unclip line (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Safety instructions:

Injury hazard when tensioning or releasing the drive belt.

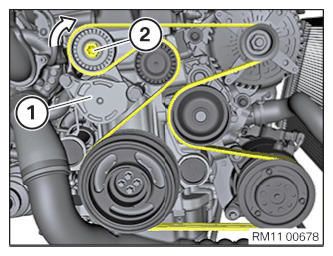

Release belt tensioner (1) on screw (2) in arrow direction (refer to following operations).

Courtesy of BMW OF NORTH AMERICA, INC.

Special tool 2 365 291 to relieve belt tensioner.

Courtesy of BMW OF NORTH AMERICA, INC.

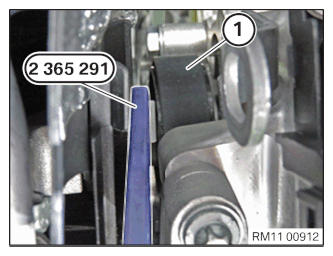

Position special tool 2 365 291 on the idler pulley of the belt tensioner.

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip fuel lines on holder (1).

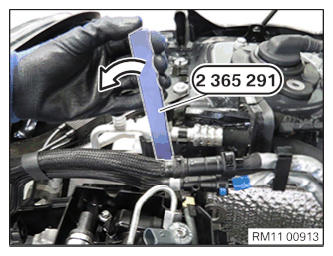

Relieve belt tensioner with special tool 2 365 291 in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Operation needs to be carried out by a second person helping.

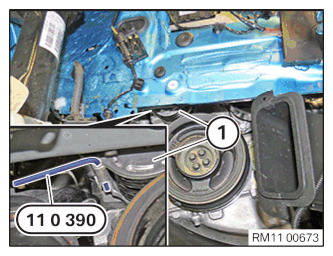

Secure belt tensioner (1) in place with special tool 11 0 390.

Courtesy of BMW OF NORTH AMERICA, INC.

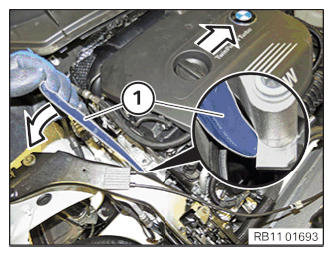

NOTE: If the special tool 11 0 390 cannot be mounted, the engine must be pushed slightly (max. 3 mm) at the engine mount in the direction of the arrow using the mounting lever (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Safety instructions:

Injury hazard when tensioning or releasing the drive belt.

Release belt tensioner (1) on screw (2) in arrow direction (refer to following operations).

Courtesy of BMW OF NORTH AMERICA, INC.

Special tool 2 365 291 for relieving belt tensioner.

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 2 365 291 on idler pulley (1) of belt tensioner.

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip fuel lines on holder.

Relieve belt tensioner using special tool 2 365 291 in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Operation needs to be carried out by a second person helping.

Remove special tool 11 0 390 from belt tensioner (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If the special tool 11 0 390 cannot be mounted, the engine must be pushed slightly (max. 3 mm) at the engine mount in the direction of the arrow using the mounting lever (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Tightening torque: 11 00 2AZ .

Clip in line (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Install partition wall (3).

Tighten screw (2).

Attach expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install THRUST FIELD .
Install front UNDERBODY PROTECTION
Install front right WHEEL ARCH COVER .
